Product introduction of Terracotta Panel Curtain Wall System:
Terracotta Panel Curtain Wall System is a green building exterior wall system, primarily made of natural clay and fired at high temperatures. Terracotta Panel Curtain Wall System boasts a unique texture, natural color, and excellent physical properties, making it an outstanding choice for exterior walls. Terracotta Panel Curtain Wall System also offers excellent thermal insulation, sound insulation, and energy efficiency, making it highly suitable for the exterior walls of various high-end public buildings. E-TaiFeng's Terracotta curtain wall products utilize internationally advanced technology, ensuring precise dimensions, uniform color, and a robust exterior wall material that resists wind and rain.
Structural components of Terracotta Panel Curtain Wall System:
| Ceramic panel surface layer | Made from high-quality natural clay, fired at high temperatures, possessing fire-resistant, frost-resistant, and UV-resistant properties. |
| Frame system of Terracotta curtain wall | Aluminum alloy or galvanized steel structure supports and secures the terracotta panel components. |
| Fixing system of Terracotta facade panel | Specialized fasteners, stainless steel bolts, clamps, and other mechanical connectors ensure sturdiness and safety. |
| Insulation layer (optional) | Rock wool or polyurethane insulation boards can be added to improve energy efficiency. |
| Sealing and waterproofing system | Waterproof and breathable membrane and drainage design prevent rainwater leakage and internal dampness. |
Product advantages of Terracotta curtain wall:
The most distinctive feature of Terracotta facade panel is its natural yet sophisticated texture, rich colors, and strong sense of layering, giving buildings a more artistic feel. Terracotta facade panel is made from natural clay and contains no harmful substances, making it environmentally friendly and healthy. Terracotta facade panel itself is high in strength and weather-resistant, impervious to wind and sun, and its colors do not easily fade over many years. When combined with an insulation system, Terracotta curtain wall effectively saves energy, providing warmth in winter and coolness in summer. Terracotta curtain wall also possesses excellent sound insulation and fire resistance, ensuring safety and comfort. In terms of appearance, Terracotta curtain wall can be customized with different colors, textures, and surface effects according to the project, offering a high degree of design freedom.
Key performance indicators of Terracotta curtain wall:
| Wind pressure resistance | ≥ 4.5 kPa, suitable for high-rise and super high-rise buildings |
| Water absorption rate | ≤ 6%, effectively preventing freeze-thaw damage |
| Frost resistance | No cracks or peeling after 100 freeze-thaw cycles |
| Fire resistance | A1 grade, non-combustible material |
| Thermal insulation performance | Heat transfer coefficient U-value can be as low as 1.6 W/(㎡·K) |
| Sound insulation performance | Up to 40–45 dB |
| Lifespan | Service life can reach over 50 years |

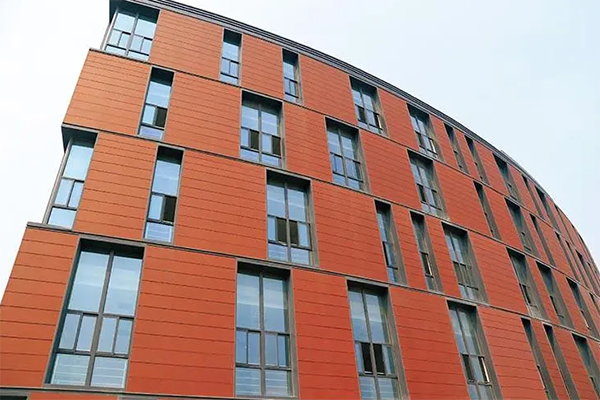

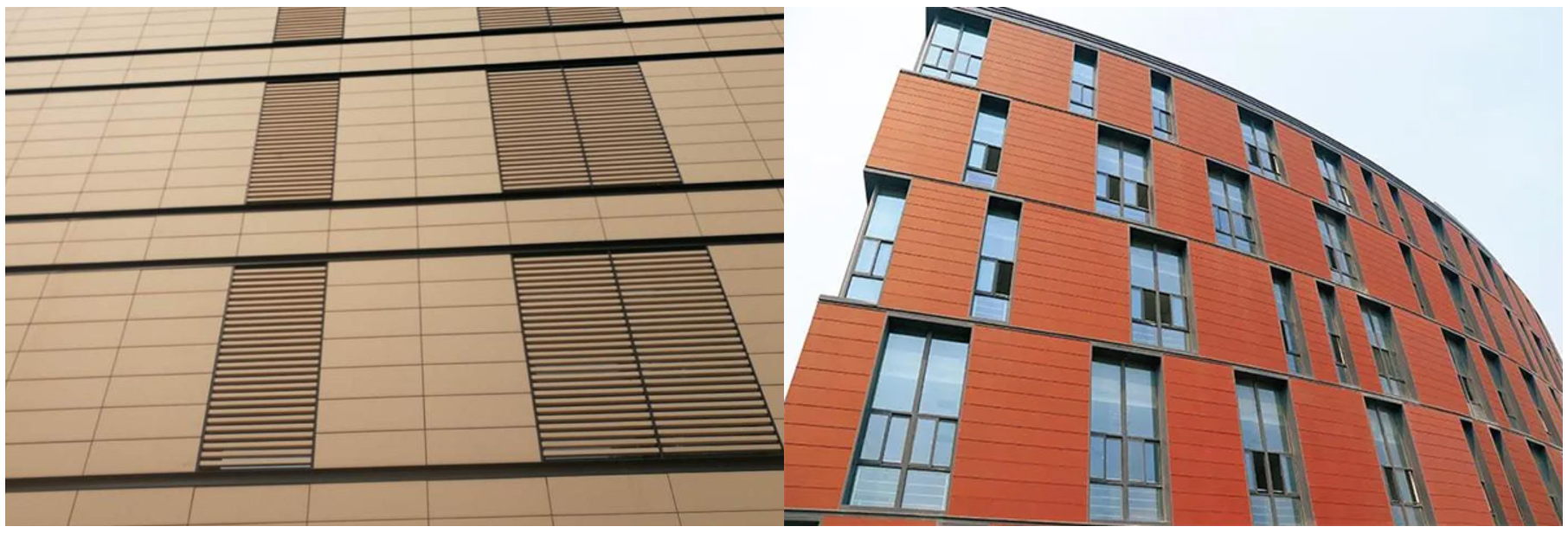

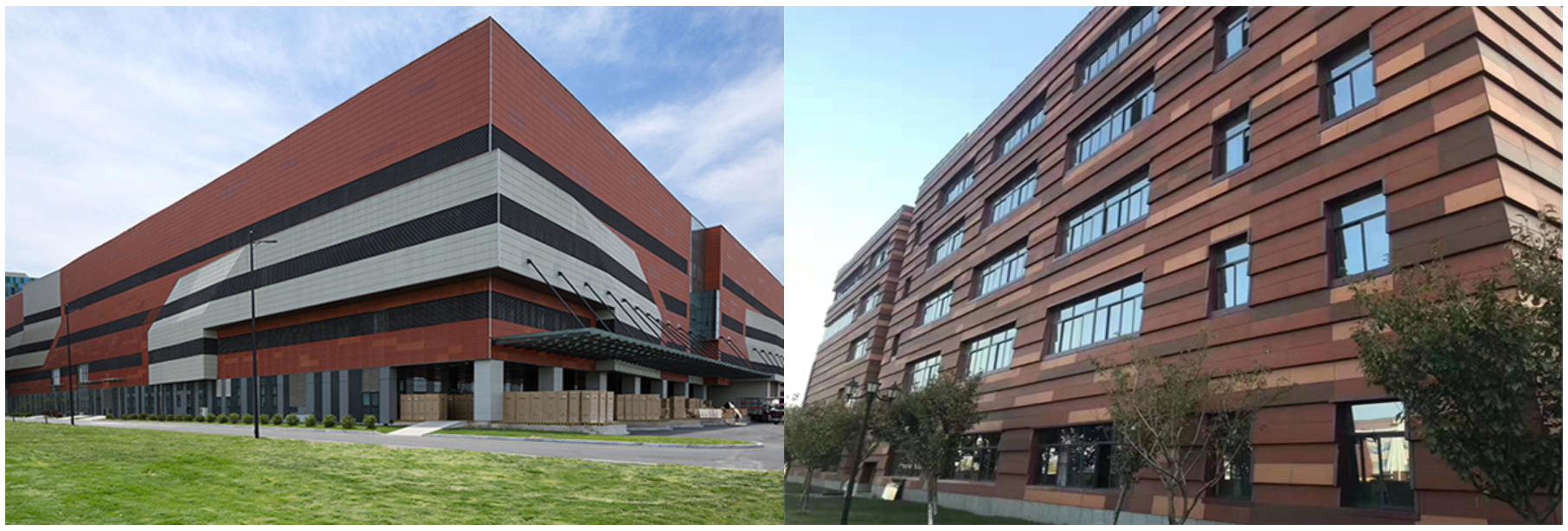

Product Application of Terracotta curtain wall:
Terracotta panel curtain wall system is now commonly seen on many high-end buildings, and its natural texture and sophisticated appearance are particularly popular. It's also used on the exterior walls of corporate headquarters, office buildings, and convention centers. Terracotta panel curtain wall is frequently used in large shopping malls, schools, hospitals, and other public buildings, not only for its aesthetic appeal but also for its improved environmental performance. Terracotta panel curtain wall exterior wall designs give buildings an artistic feel while remaining practical, durable, and environmentally friendly.
Quality Management of Terracotta building panel:
E-TaiFeng boasts a mature Terracotta building panel design, production, and installation team. Utilizing modular design and concealed mounting structures, the installation process ensures high safety. All products are ISO9001 international quality system certified and strictly adhere to the GB/T 21086 curtain wall standard, ensuring traceability and controllability at every stage, from terracotta panel firing and keel processing to finished product assembly. EtaiFeng's factory can provide third-party performance testing reports, offering robust quality assurance for project delivery.
FAQs:
1. What is the lifespan of Terracotta facade panel?
Terracotta facade panel is made from high-temperature fired natural clay, resulting in a stable structure and strong anti-aging properties. Its lifespan can generally reach over 50 years.
2. Will Terracotta building panel fade or crack?
Terracotta building panels are fired at 1200℃, resulting in a unified color effect between the glaze and the ceramic material. It will not fade due to sunlight or rain. Terracotta facade panel material has high density and low water absorption, making it less prone to cracking due to freeze-thaw cycles.
3. Does Terracotta building panel have fire resistance?
Terracotta building panel terracotta panels are made from natural inorganic materials, achieving an A1 fire rating. They are non-combustible, smokeless, and release no toxic gases, making them ideal for public buildings and high-rise projects with high fire safety requirements.
4. Can Terracotta building panel be customized in color and size?
Terracotta building panel supports various customization options, including color, size, surface texture, and installation method. Etaifeng can provide customized design solutions for different buyers based on project styles and architectural needs.
About us:
For nearly three decades, Liaoning E-TaiFeng Co., Ltd. has combined technological innovation and fine craftsmanship to lead the door and window industry. Our state-of-the-art factory spans 60,000 square meters, equipped with imported precision machinery. Certified under ISO9001 and recognized by the European Door and Window Association, we specialize in high-end system doors, windows, and curtain walls. Each product reflects our pursuit of efficiency, aesthetics, and sustainability—empowering homeowners and architects alike with intelligent, long-lasting solutions.
