Product introduction of glass exterior wall:
Glass curtain wall is a modern building facade system constructed from a high-strength aluminum alloy frame and tempered or laminated glass, resulting in an aesthetically pleasing and energy-efficient design. It provides a stylish and elegant exterior while offering excellent thermal insulation, sound insulation, and weatherproofing. Precision-engineered and manufactured, Glass curtain wall offers excellent sealing properties, effectively preventing air and rainwater infiltration. Its large, all-glass structure maximizes natural light, creating a bright and comfortable interior space. It is ideally suited for modern buildings such as office buildings, commercial complexes, and hotels.
Structural Composition of Glass curtain wall:

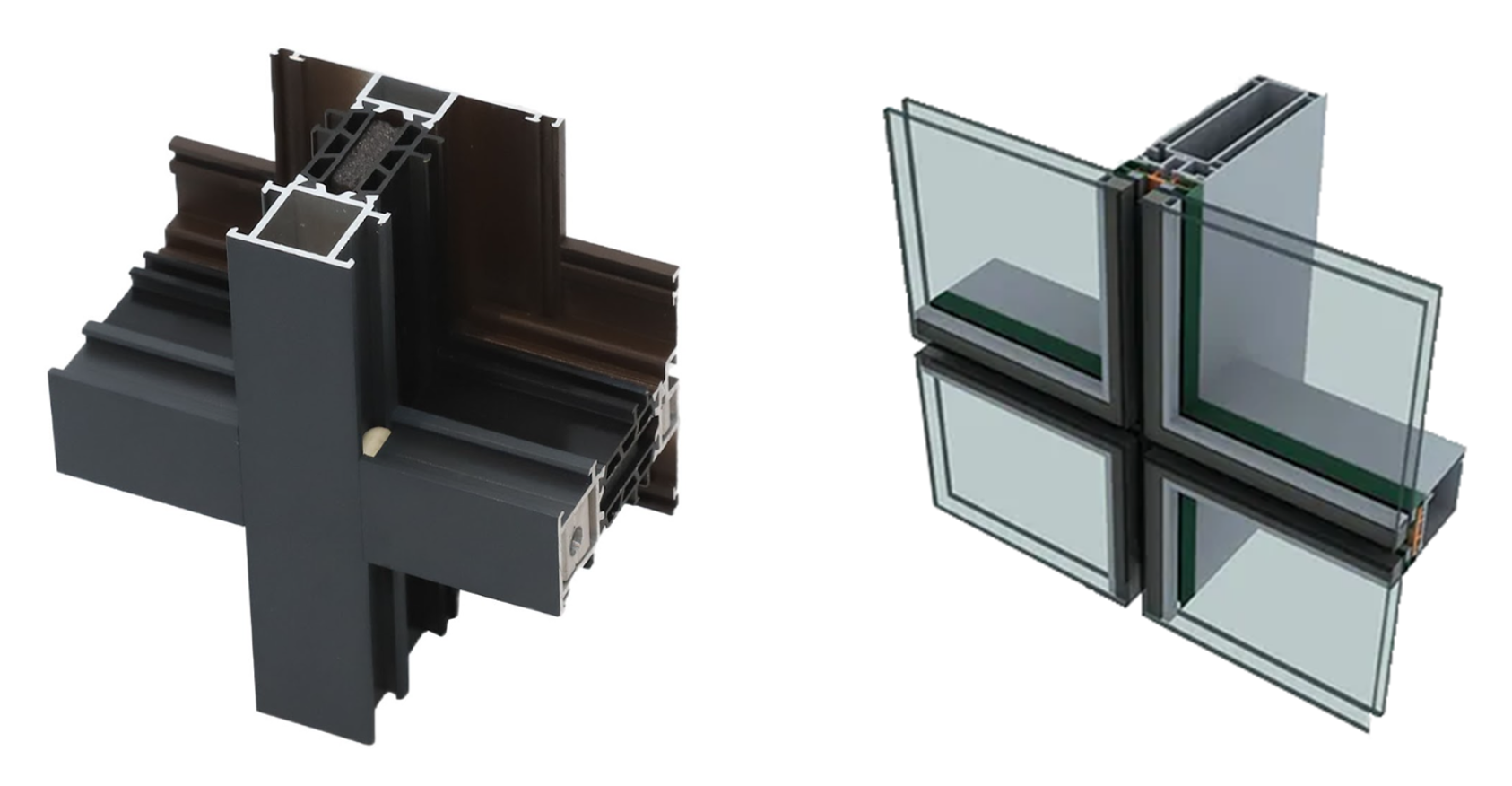

Glass curtain wall consists of glass panels, an aluminum alloy frame, a sealing system, and metal connectors. Panels typically utilize 6mm–24mm tempered glass, laminated glass, or insulating glass. E-TaiFeng has a dedicated design team that can customize different glass types based on building heights and climate conditions. The frame is constructed of 6063-T5 high-strength aluminum alloy profiles, and connecting components are made of stainless steel or hot-dip galvanized steel, resulting in a very sturdy structure (customizable).
Key Performance Indicators of Glass curtain wall glazing:
Wind Pressure Resistance: Resists wind pressure up to 6.0 kPa (equivalent to a force 12 typhoon), suitable for high-rise buildings.
Airtightness: Meets GB/T 7106-2019 Level 8 (≤0.5 m³/m²·h).
Watertightness: Meets GB/T 7106-2019 Level 6 (≥700 Pa), ensuring no leakage even in strong winds and heavy rain.
Thermal Insulation: The heat transfer coefficient (K value) is as low as 2.0 W/m²·K, meeting building energy-saving standards.
Sound Insulation: Reaches 35–40 dB, effectively reducing external noise.
Product advantages of Glass curtain wall glazing:
Our entire glass exterior wall product line is customizable, allowing for tailored designs tailored to varying architectural styles, structural forms, and functional requirements. We offer customizable exposed frame, concealed frame, semi-concealed frame, and unitized structures to suit diverse facade designs and construction requirements. Commercial window curtain wall glass panels can be made of tempered, laminated, or insulating glass, with a variety of coatings, colors, and thicknesses to achieve the desired energy savings and visual effects.
Glass exterior wall provides a transparent visual effect, enhances the modernity and aesthetics of the building, can reflect and transmit light, and make the building look brighter and more open.
Glass exterior wall has good weather resistance and can resist the erosion of natural environments such as sunlight, rain, wind and snow, and maintain a good condition for a long time.
Glass exterior wall uses energy-saving materials such as low-emissivity (Low-E) glass and hollow glass, has good thermal insulation performance, and effectively reduces energy consumption.
Product Application of commercial window curtain wall glazing:

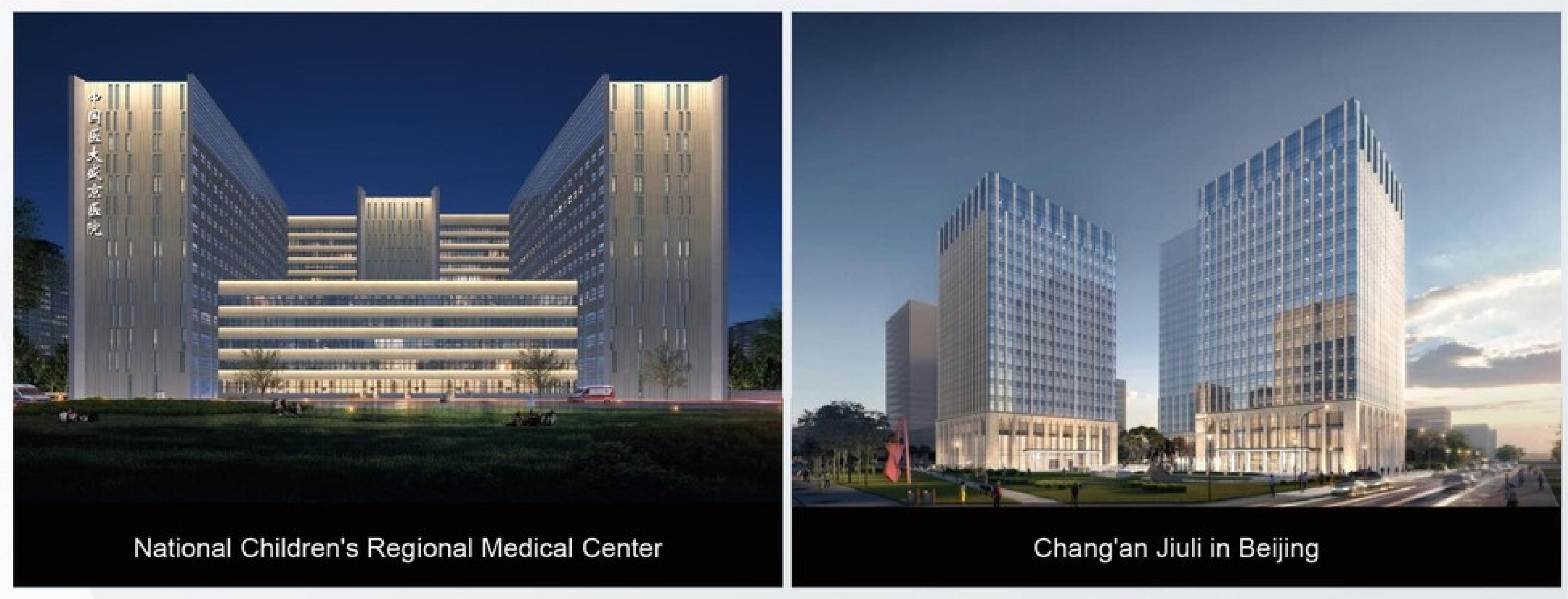

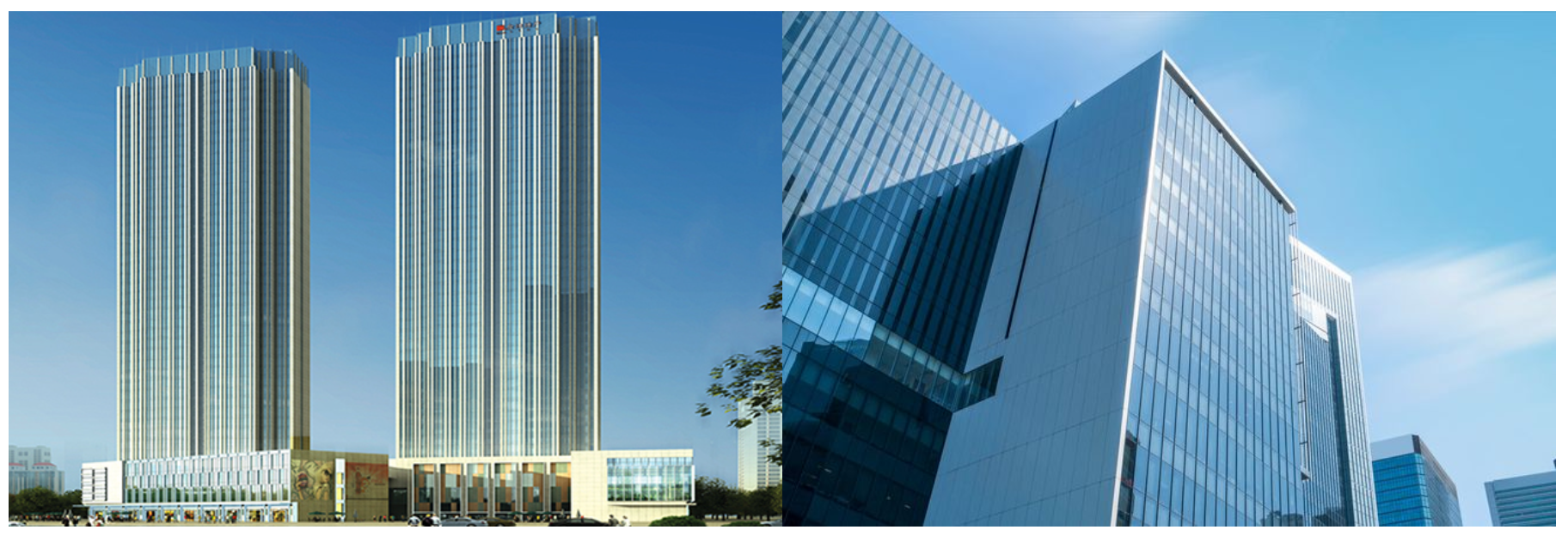

High-Rise Buildings: Commercial window curtain wall's wind-resistant and airtight properties make it suitable for the facades of large buildings such as office buildings, hotels, and business centers.
Shopping Centers: Commercial window curtain wall's main structure utilizes large expanses of glass, providing excellent overall lighting, making it ideal for complex buildings like shopping centers.
Public Buildings: Glass exterior wall is commonly used in public spaces such as airports, convention centers, train stations, and stadiums, showcasing its modernity and iconic character.
Custom Building Projects: We can design custom Glass curtain wall glazing special shaped or special-shaped curtain walls to meet your specific needs, offering a variety of custom structural and glazing options.
Quality Control of glass exterior wall:

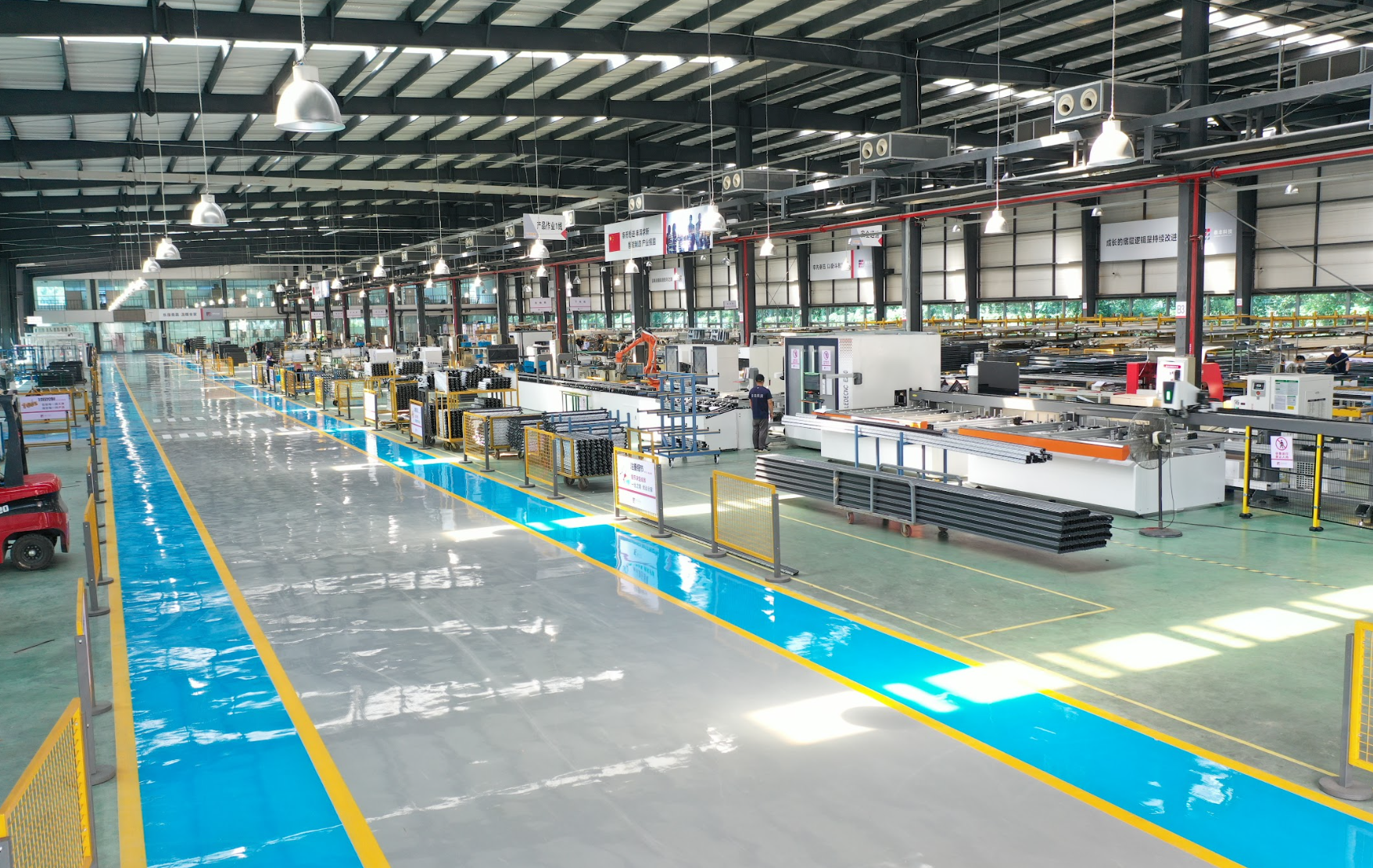

Our factory strictly adheres to the ISO9001 quality management system and has an independent quality inspection department to thoroughly control every step of the glass exterior wall production process, from raw materials to finished product. During the glass exterior wall production process, the quality department conducts spot checks and performance tests on key processes, including dimensional accuracy, structural strength, sealing performance, and surface finish quality. Before shipping, all glass exterior wall products must pass specialized tests for wind pressure resistance, airtightness, watertightness, and thermal insulation, and a comprehensive test report must be issued.
FAQs of glass exterior wall:
1. Can commercial window curtain wall be customized for each project?
Yes. We have a professional design and technical team that can tailor designs to suit different architectural styles, structural requirements, and regional climate conditions.
2. How does your commercial window curtain wall glazing perform in terms of wind pressure resistance?
Our commercial window curtain wall glazing system undergoes rigorous structural calculations and professional testing, and can withstand wind pressures up to level 12 in a typhoon. The profile frame is made of high-strength aluminum alloy, and the connection joints are designed to ensure safety and stability even in high-rise buildings and coastal areas.
3. How is the airtightness and watertightness of the commercial window curtain wall glazing?
Utilizing a multi-layer sealing structure and high-performance sealing strip system, the Glass curtain wall glazing achieves airtightness level 8 according to the GB/T7106-2019 standard and watertightness level 6 or higher.
4. How does the Glass curtain wall glazing perform in terms of energy conservation and thermal insulation?
We utilize Low-E insulating glass, thermally insulated aluminum profiles, and thermally insulating sealing strips to significantly reduce heat transfer, achieving energy savings of up to 30%-50%. Whether it's winter insulation or summer heat insulation, Glass curtain wall glazing effectively improves the building's overall energy efficiency and meets green building standards.
5. How do we ensure glass exterior wall quality and safety?
Our factory has an independent quality testing center and strictly adheres to ISO9001 quality system standards. Complete test reports are provided for all products leaving our factory.
About us:

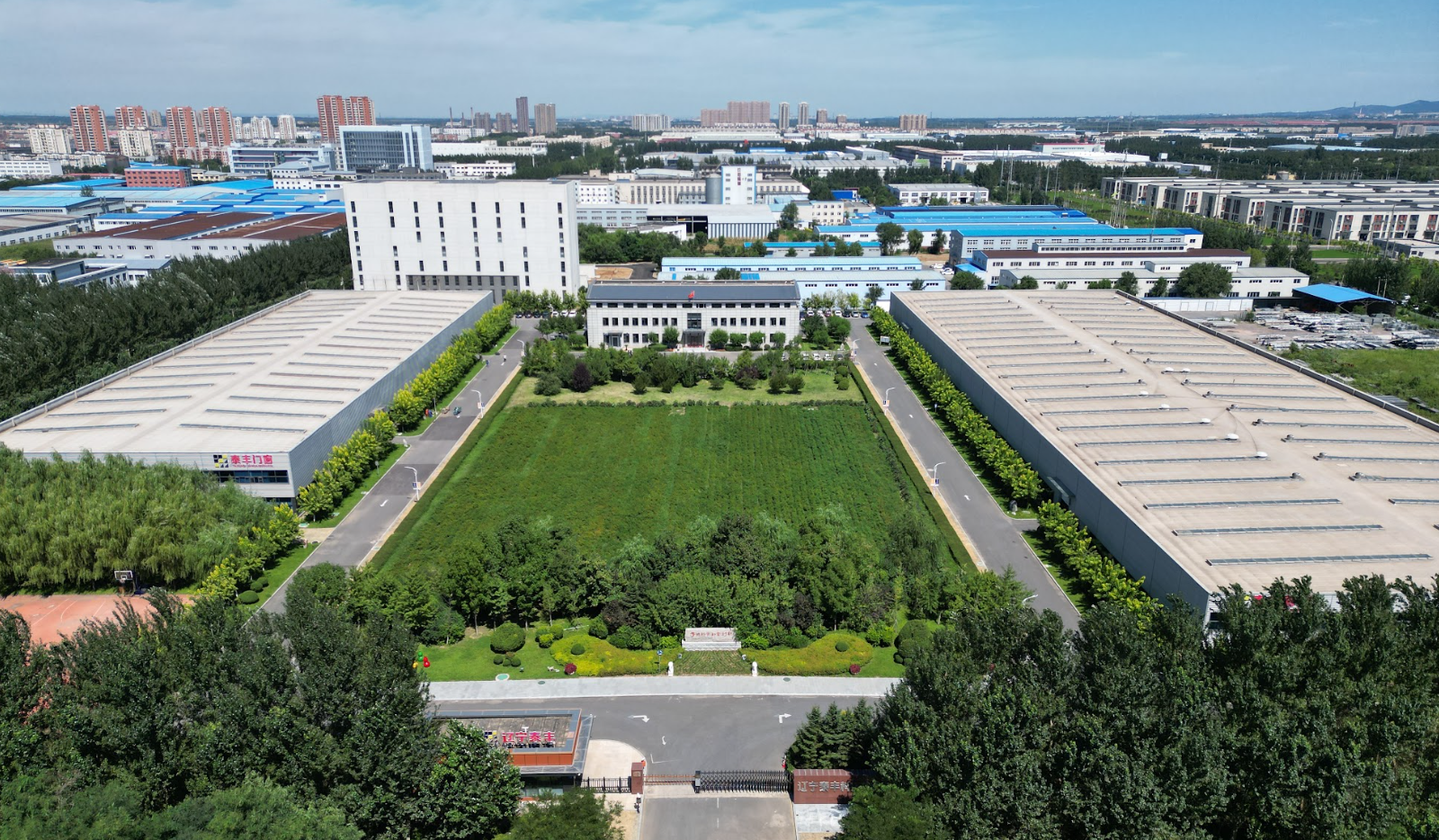

Liaoning E-taifeng Co.,Ltd started in 1995 and has been focusing on door and window design and manufacturing for more than 20 years. In 2002, it became a member of the European Door and Window Association and obtained ISO9001 international quality system certification. The company has first-class qualifications for decoration construction and first-class qualifications for special engineering. Liaoning E-taifeng Co.,Ltd has a professional R&D and design team and can customize curtain wall glazing to meet your needs. We value customer feedback, continuously improve our products and services, and ensure customer satisfaction.
