Product Introduction of Slim Aluminium frame Facade:
A hidden frame glass curtain wall is a type of glass curtain wall commonly used for building facades. It primarily involves fixing glass panels to a metal frame using structural adhesive or mechanical means. This method results in a highly stable and reliable glass curtain wall structure, making it the most widely used curtain wall type in current building facade design. E-TaiFeng utilizes high-strength aluminum alloy or stainless steel frames (customizable to meet different customer needs), paired with high-quality tempered, insulated, or laminated glass (also optional), providing buyers with energy-efficient and safe curtain wall solutions. A hidden frame glass curtain wall is ideally suited for the facades of various modern buildings.
Structural Components of Frameless Glass Curtain Wall:
| Components | Material Specifications |
| Columns and Beams | Frameless Glass Curtain Wall's main body uses high-strength aluminum alloy or stainless steel profiles, offering excellent load-bearing capacity. |
| Glass Panels | Frameless Glass Curtain Wall's glass components can be tempered glass, laminated glass, or insulated Low-E glass. |
| Connection System | Dedicated corner brackets, structural adhesives, bolts, and other mechanical connectors are used. |
| Sealing System | High-performance silicone structural adhesives and EPDM sealing strips ensure airtightness and watertightness. |
| Decorative Coverings | Aluminum profile decorative covers or concealed frame structures meet aesthetic requirements. |
Product advantages of Slim Aluminium frame Facade:
Frameless Glass Curtain Wall systems utilize a frame structure, ensuring exceptional stability and reliability, easily withstanding external forces such as strong winds and earthquakes. The main body of the Frameless Glass Curtain Wall system employs double-glazed or Low-E glass, providing excellent natural light while effectively reducing energy consumption and maintaining indoor comfort. Installation and maintenance of Slim Aluminium frame Facade systems are also highly convenient; the frame structure facilitates installation and shortens the construction period. The hidden frame glass curtain wall system's appearance can be flexibly designed with exposed, concealed, or semi-concealed frames, offering both practicality and aesthetics. Etaifeng can also tailor the most suitable hidden frame glass curtain wall products and configuration solutions for buyers based on the height, climate, and building function of different projects, truly providing a one-stop service.
Key performance indicators of Slim Aluminium frame Facade:
| Wind pressure resistance | ≥ 4.5 kPa, meeting high-rise building standards |
| Air tightness | Meets GB/T 7106-2019 standard, level 8 |
| Water tightness | Can reach level 6 or above, preventing rainwater leakage |
| Thermal insulation | Heat transfer coefficient U-value can be as low as 2.0 W/(㎡·K) |
| Sound insulation | Can reach 35~40 dB |
| Seismic resistance | Meets seismic design requirements for curtain walls in high-intensity seismic zones |

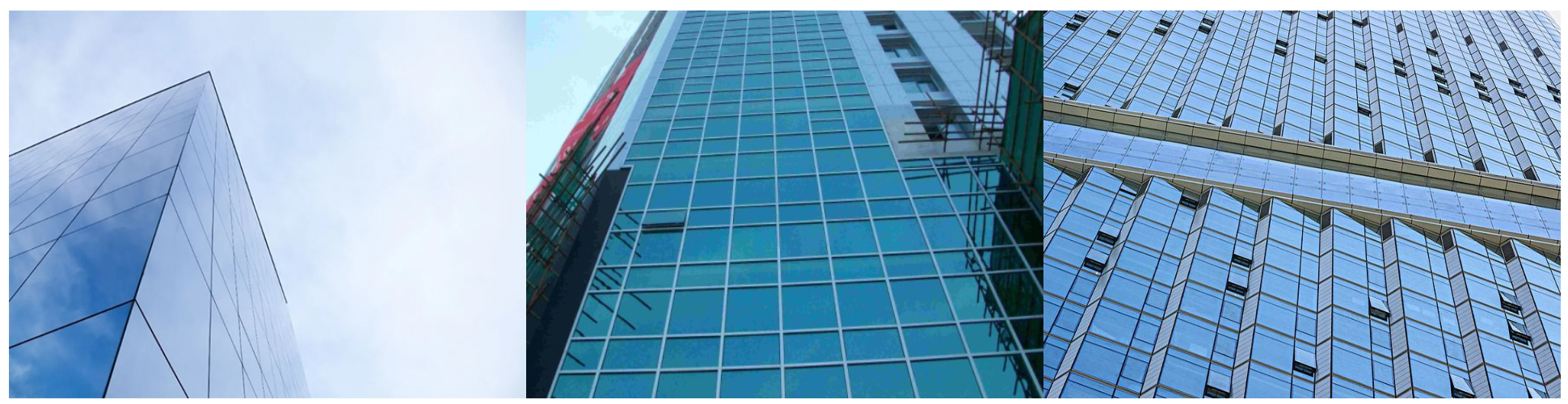

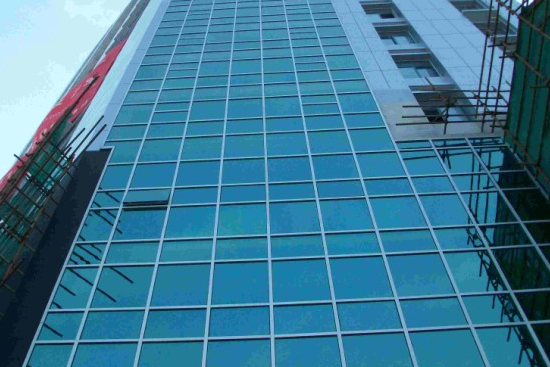

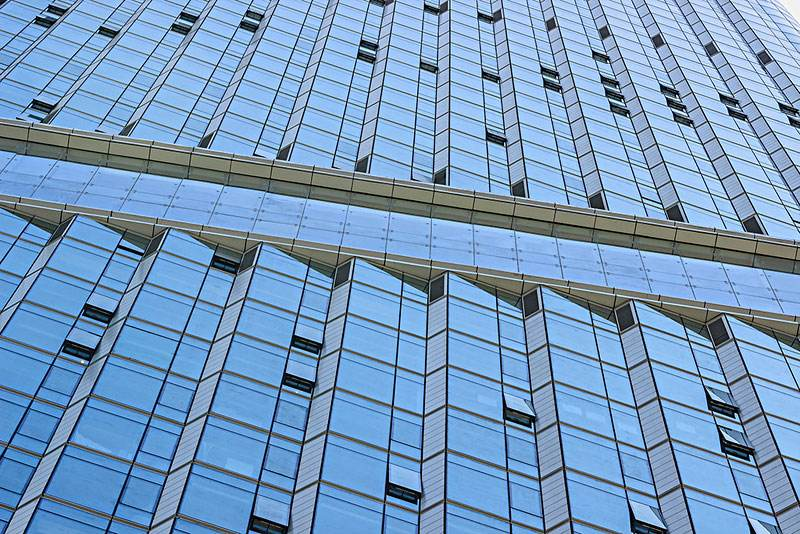

Product Application of Frame glass curtain wall:
Structural Glass Facade has a very wide range of applications, meeting the facade requirements of almost all modern buildings. For example, it's an excellent choice for high-rise office buildings, corporate headquarters, and star-rated hotels. The extensive use of glass structures provides excellent natural lighting, making it both aesthetically pleasing and practical. In medical, educational, and research buildings, Slim Aluminium frame Facade Structural Glass Facade can also create a bright and comfortable interior environment, giving a sense of open space.
Quality Management of hidden frame glass curtain wall:
E-TaiFeng possesses a comprehensive quality inspection system and a professional testing team. All Structural Glass Facade components undergo strength, airtightness, watertightness, and weather resistance tests. The factory can issue third-party testing reports to ensure that every Structural Glass Facade component meets international and national standards. E-TaiFeng's professional engineering team also provides full-process technical support from design, detailing, manufacturing to installation.
FAQs of Frameless Glass Curtain Wall:

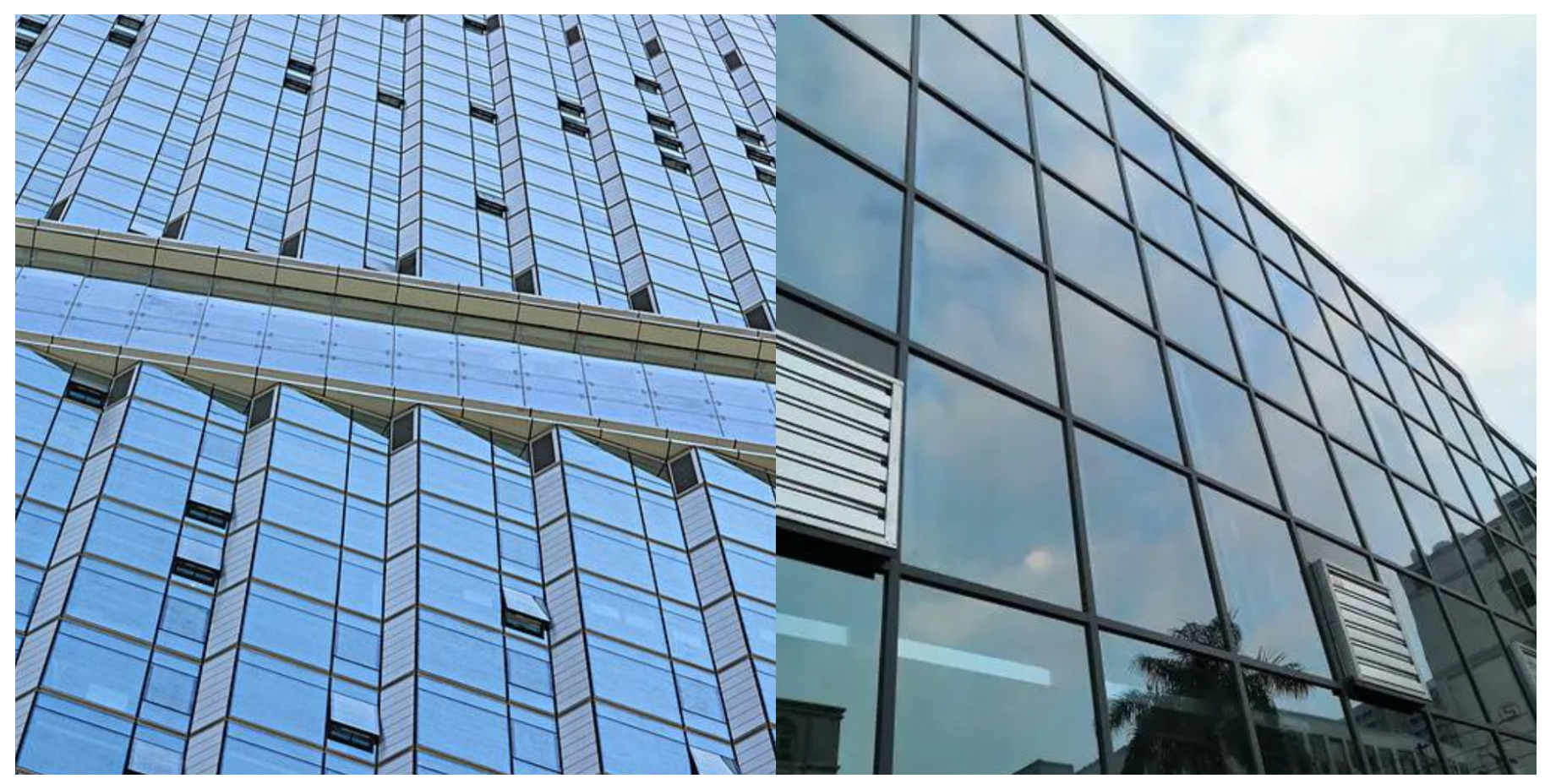

1. What types of Structural Glass Facade buildings are available?
Structural Glass Facade buildings can be made in three forms: exposed frame, concealed frame, and semi-concealed frame. Exposed frame Structural Glass Facade buildings show the frame and have strong lines; concealed frame hidden frame glass curtain wall buildings hide the main frame, resulting in a very cohesive look; semi-concealed frame hidden frame glass curtain wall buildings fall between the two, combining structural integrity and aesthetics, and can be freely chosen according to different architectural styles.
2. How safe are hidden frame glass curtain wall buildings?
Slim Aluminium frame Facade building frames can use high-strength aluminum alloy or stainless steel structures (optional and customizable), combined with tempered glass or Low-E glass. The overall wind pressure resistance can reach over 4.5 kPa, meeting the requirements of high-rise and super high-rise buildings.
3. Do Slim Aluminium frame Facade buildings offer energy-saving and sound insulation benefits?
Frameless Glass Curtain Wall buildings are typically equipped with double-glazed Low-E glass, providing excellent overall lighting while effectively reducing heat conduction and lowering building energy consumption; they can achieve a sound insulation effect of 35–40 dB.
4. How to maintain and clean Frameless Glass Curtain Wall buildings?
Structural Glass Facade's structural design is simple and clearly divided, with individual glass and frame components that are easily replaceable, making maintenance very convenient. Cleaning access routes or suspended platform supports can be pre-installed according to the design for easy regular cleaning and maintenance.
5. Can customized designs be provided to meet project requirements?
Absolutely. Etaifeng has a professional design team that can provide professional design solutions based on different building heights, climate conditions, appearance styles, and energy-saving requirements.
Installation Guide of Structural Glass Facade:
The installation process for Structural Glass Facade is relatively simple, but each step requires meticulous operation. Generally, the Slim Aluminium frame Facade's uprights are first fixed to the main structure according to the design drawings, followed by the installation of the crossbeams to form a stable frame. The glass panels are then attached to the Frameless Glass Curtain Wall frame using structural adhesive or mechanical fasteners, adjusting for flatness and sealing. All joints are treated with silicone structural adhesive and sealing strips to ensure airtightness and watertightness.

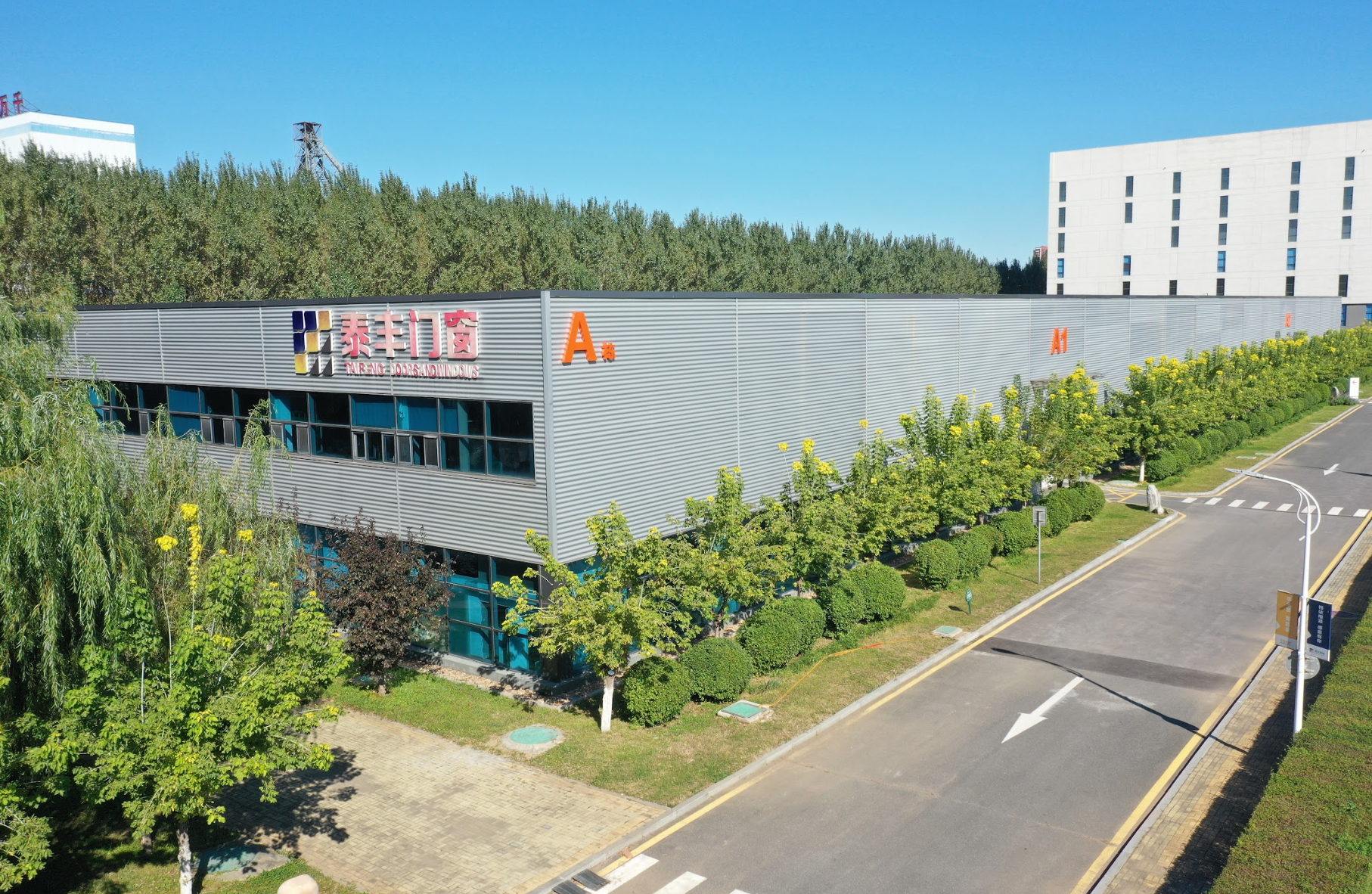

About us:
With 29 years of continuous development, E-TaiFeng has become a leader in the energy-saving door and window industry. Since its establishment in 1995, the company has focused on combining environmental protection with modern design. As an ISO9001-certified manufacturer and member of the European Door and Window Association, we uphold strict quality standards in every process. Our products cover the full range of architectural and residential needs—from system windows to curtain walls and sunrooms. Supported by advanced equipment and professional R&D teams, E-TaiFeng continues to create efficient, intelligent, and elegant solutions for sustainable living spaces.
