Product introduction of energy saving glass Double Layer energy saves Glass curtain wall:
Energy saving glass Double glazed curtain wall is a new type of curtain wall product produced by Etaifeng, consisting of two layers of glass curtain wall, with an air layer in between. By forming a controllable air insulation layer, energy saving glass Double glazed curtain wall can effectively reduce heat conduction and noise transmission from the outside world, achieving excellent energy-saving and environmental protection effects.
Structural components of energy saving glass Double Layer energy saves Glass curtain wall:
| Components | Materials and Specifications |
| Outer curtain wall | Energy saving glass Double Layer energy saves Glass curtain wall uses high-strength tempered or laminated glass, which can be equipped with a Low-E coating to effectively enhance thermal insulation performance and reduce solar heat transfer. |
| Inner curtain wall | Double Layer energy saves Glass curtain wall can use insulated glass or safety glass to form a stable air convection layer with the outer curtain wall, improving energy efficiency and sound insulation. |
| Air layer system | Energy saving glass Double glazed curtain wall air layer thickness is typically 200mm–600mm, and can be configured with natural or mechanical ventilation to achieve functions such as heat preservation, noise reduction, and anti-condensation. |
| Frame structure | Double Layer energy saves Glass curtain wall uses high-strength thermally broken aluminum alloy or steel structural keel, balancing structural load-bearing capacity and aesthetic appearance, ensuring the overall stability and reliability of the system. |
| Sealing and connections | Energy saving glass Double glazed curtain wall uses high-performance silicone structural adhesive and EPDM sealing strips to provide excellent airtightness and watertightness, ensuring safe and stable long-term use. |
Product Advantages of energy saving glass Double glazed curtain wall:
Energy efficient curtain wall boasts excellent energy efficiency. Its double-layer structure effectively blocks heat exchange, significantly reducing building energy consumption and meeting green building energy efficiency standards. The air layer in the middle of the energy efficient curtain wall structure acts as a temperature buffer, ensuring a comfortable indoor temperature year-round. The double-layer structure also reduces external noise interference, creating a quiet and comfortable office and living environment. Energy efficient curtain wall can also integrate intelligent louvers, automatic ventilation, and lighting control systems to achieve a balance between energy saving and comfort. Etaifeng has a professional design and customization team that can provide one-on-one customized designs based on the geographical location, climate conditions, and aesthetic requirements of different projects, meeting the diverse needs of different clients.
Key performance indicators of energy efficient curtain wall:
| Wind pressure resistance | ≥ 4.0 kPa | Meets safety requirements for high-rise and super-high-rise buildings |
| Air tightness | Level 8 (Complies with GB/T 7106-2019) | Ensures air quality stability within the building |
| Water tightness | ≥ Level 6 | Effectively prevents rainwater leakage |
| Thermal insulation (U-value) | ≤ 1.5 W/(㎡·K) | Improves energy efficiency |
| Sound insulation | 35-45 dB | Significantly reduces external noise |
| Energy efficiency | 30%-60% improvement | More energy-efficient and environmentally friendly than traditional curtain walls |
Application Scenarios of energy efficient curtain wall:
Energy efficient curtain wall's double-layer structure makes it ideal for energy-efficient and high-end building projects. For example, it can create an efficient and comfortable working and research environment in modern office buildings, corporate headquarters, and research centers. Energy efficient curtain wall is also well-suited for university laboratories, government public buildings, and exhibition halls, meeting the dual requirements of energy conservation and airy spaces.
Quality Management:

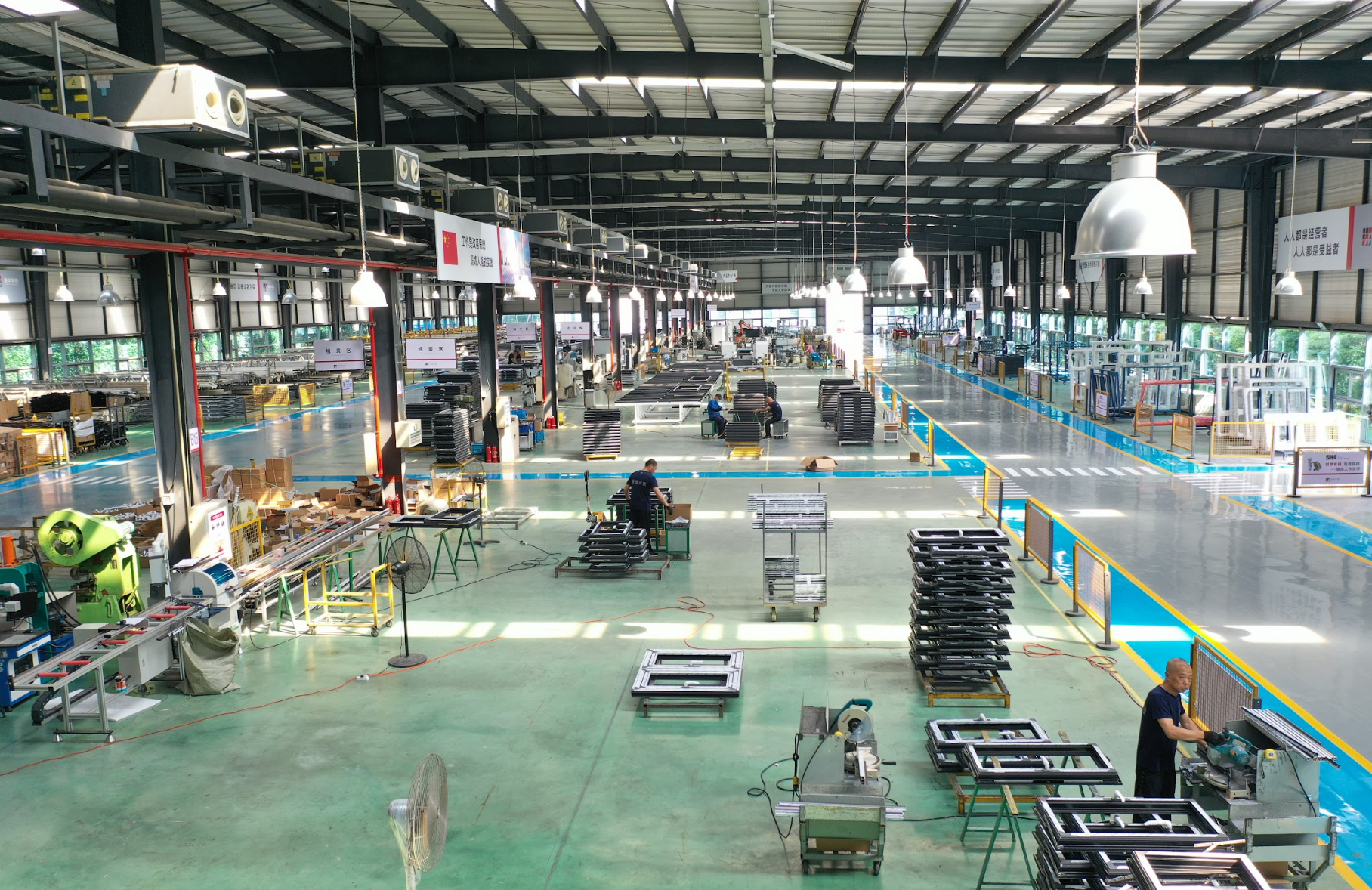

Etaifeng strictly adheres to the ISO9001 quality management system. From material procurement to finished product delivery, each product undergoes rigorous testing and can be issued with corresponding test reports, providing peace of mind. Etaifeng's factory boasts a professional design team, production workshop, and installation guidance team, offering customers a comprehensive service process from concept design to engineering development, manufacturing, on-site guidance, and after-sales maintenance.
FAQs:
1. What is the energy-saving principle of energy saving glass Double glazed curtain wall?
Energy saving glass Double glazed curtain wall effectively blocks heat conduction and convection by creating an air or ventilation layer between the inner and outer layers of glass. This air layer allows for natural or mechanical ventilation, achieving heat insulation in summer and thermal insulation in winter, thus improving energy efficiency.
2. What performance improvements does energy saving glass Double glazed curtain wall offer compared to traditional single-layer curtain walls?
Compared to traditional single-layer curtain walls, energy saving glass Double glazed curtain wall offers significantly better performance in terms of thermal insulation, sound insulation, airtightness, and watertightness. Energy efficient curtain wall's heat transfer coefficient (U-value) can be reduced to 1.5 W/(㎡·K), sound insulation performance can reach 45 dB, and energy savings are improved by 30%-60%.
3. Can energy efficient curtain wall be equipped with an intelligent control system?
Energy efficient curtain wall can be optionally equipped with intelligent louvers, automatic ventilation, and lighting control systems to optimize energy consumption and indoor comfort.
4. What types of buildings is Double Layer energy saves Glass curtain wall suitable for?
Energy saving glass is suitable for energy-efficient buildings, high-end office buildings, research centers, public buildings, airport terminals, exhibition halls, and other projects with high requirements for energy conservation, sound insulation, and aesthetics. Etaifeng has provided energy saving glass products for numerous projects and received widespread acclaim.
