Micro-ventilated Aluminum Window

  • Eternalfine
  • China
  • Determined based on project
  • 1 million square meters per year
1. Micro ventilation system window has good lighting effect and atmospheric decoration effect. 2. Micro ventilation system window uses thermal insulation aluminum alloy, which separates the inner and outer aluminum materials through insulation strips, effectively blocking heat conduction and improving the insulation effect. 3. Micro ventilation system window uses ultra-high-grade aluminum with a wall thickness of 1.8mm. 4. Micro ventilation system window has a simple and modern appearance design, suitable for various architectural styles.

Product introduction of Micro ventilation system window:

Etaifeng's passive ventilation window is a high-end window and door system that combines ventilation and energy efficiency. Passive ventilation window features a unique micro-opening ventilation structure design with multiple opening modes, allowing for full opening or micro-opening. It is suitable for smaller spaces that require ventilation or only require minimal ventilation. Using passive ventilation window effectively improves indoor air quality, while maintaining good sound insulation and safety performance when closed. Passive ventilation window is ideal for residential and commercial buildings with high requirements for comfort, energy efficiency, and indoor air quality.

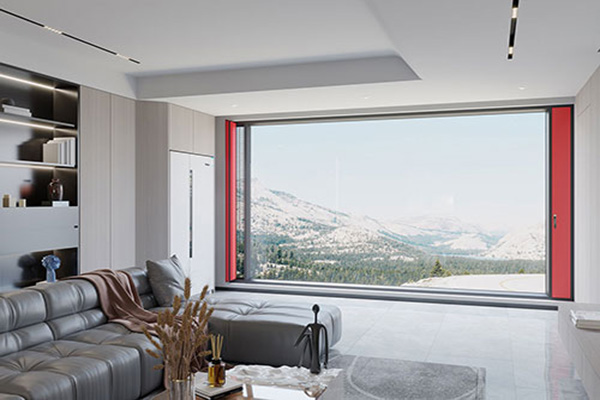

Micro vented casement window system

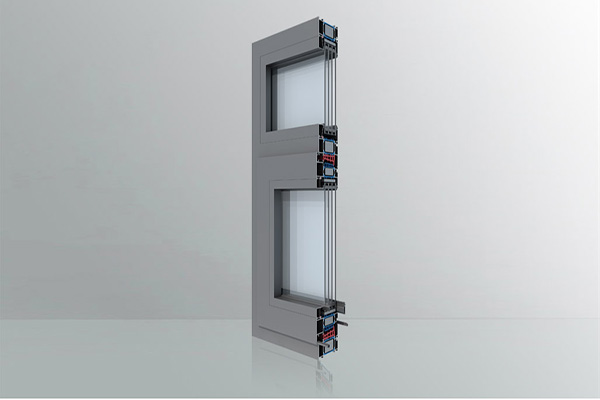

Structural Composition of Micro vented casement window system:

  • Frame and Sash Materials: The passive ventilation window model manufactured by etaifeng uses high-strength, thermally broken aluminum profiles. Both the inner and outer frames of the Micro ventilation system window model are connected by PA66 nylon thermal break strips, effectively blocking heat and cold conduction.

  • Glass Configuration: The passive ventilation window model manufactured by etaifeng uses double or triple-glazed Low-E glass, offering excellent thermal insulation and soundproofing performance.

  • Ventilation System: The Micro ventilation system window model employs an integrated, concealed micro-ventilation structure, enabling 24-hour natural ventilation without fully opening the window sash.

  • Sealing System: The passive ventilation window model uses EPDM composite sealing strips, providing excellent airtightness and preventing dust, noise, and rainwater infiltration.

  • Hardware System: The passive ventilation window model can be equipped with multi-functional ventilation hardware, allowing for free switching between normal closed, slightly open, and fully open ventilation modes.

Wind pressure resistance≥ 4.0 kPa
Air tightnessGB/T 7106-2019 Standard Level 8
Water tightness≥ Level 6
Sound insulation35 ~ 45 dB
Thermal insulationU value as low as 1.5 W/(㎡·K)
Ventilation methodMinimum ventilation, 5~10 air replacements per hour



Product advantages of Micro ventilation system window:

1. The Micro Ventilation Broken Bridge System Window produced by our company adopts an inward-opening design, which makes it very convenient to open and close the window. It is suitable for various usage scenarios. The window can be partially opened completely to provide excellent ventilation.

2. The Micro Ventilation Broken Bridge System Window produced by our company opens inward, making it easy to clean both the inside and outside of the window, making cleaning more convenient and safer.

3. The Micro Ventilation Broken Bridge System Window produced by our company has passed many international and domestic quality certifications, and the products are the highest standards in the industry.

4. The Micro Ventilation Broken Bridge System Window produced by our company uses an environmentally friendly powder spraying process, and the window surface is smooth and the color is long-lasting.

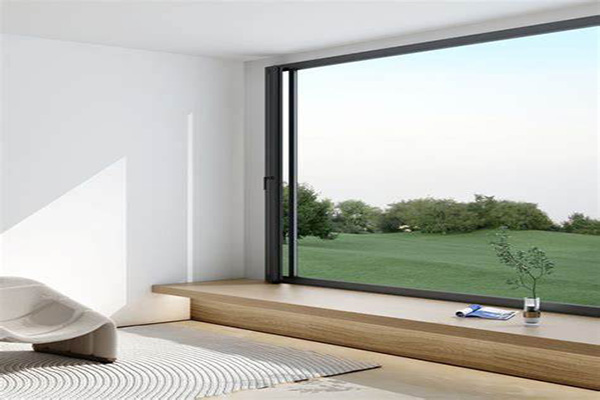

Micro Ventilation Broken Bridge System Window

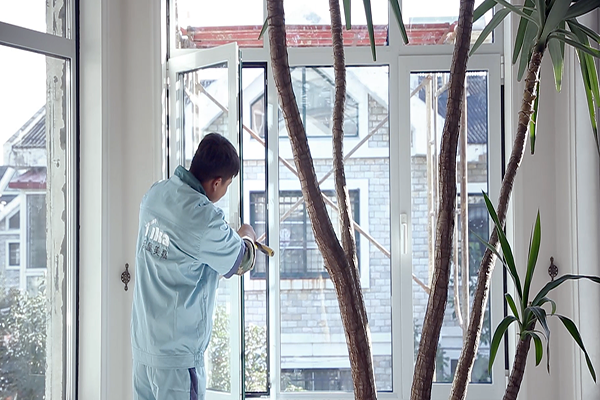

Installation and Maintenance of Micro vented casement window system:

  • Installation

Micro vented casement window system is measured, designed and guided by a professional installation team to ensure that the windows fit perfectly with the building.

Micro vented casement window system is produced and installed in strict accordance with national standards to ensure the airtightness and watertightness of the windows.

  • Maintenance

Regularly clean the glass and frame of Micro vented casement window system to keep the windows clean and beautiful.

Regularly check the sealing strips and locking systems of Micro vented casement window system to ensure the normal use and sealing performance of the windows.


Micro ventilation system window

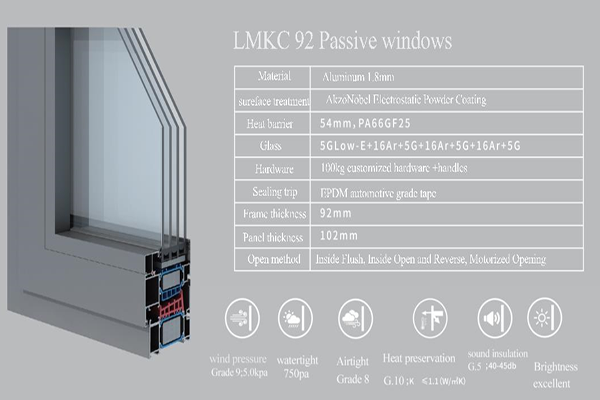

Specific parameters of Micro vented casement window system:

MaterialAluminum,thickness 1.8mm
Surface treatmentAkzo Nobel Electrostatic Powder Coating
Heat barrier54mm, PA66GF25
Glass5G Low-E+14Ar+5, or 5G Low-E+12Ar+5G+12Ar+5G
Hardware100kg Customized hardware + handles
Sealing stripEPDM automotive grade tape
Frame thickness92mm
Panel thickness102mm
Open methodInside Flush, Inside Open and Reverse, Motorized Opening


Service Package

Airflow calculation based on room volume, occupancy, and local building code ventilation requirements

Custom acoustic labyrinth design for specific external noise levels (provide site noise survey data)

CFD (Computational Fluid Dynamics) airflow simulation showing velocity and distribution in the room

Laboratory test report: airflow rate vs. pressure differential, acoustic attenuation by frequency band

Sample window for client evaluation — test the airflow and noise reduction in your own environment

Installation manual with commissioning checklist — verify airflow after installation with a smoke pencil test

5-year warranty on the ventilation channel and acoustic materials (no degradation in absorption performance)

FAQs:

1. Does the micro-ventilation compromise the window's thermal performance?

No. The ventilation channel is located within the thermal break zone of the frame. CFD analysis confirms that the interior frame surface temperature remains within 1.5°C of room temperature — well above the dew point. The window's overall U-value is not affected because the channel is integrated into the frame profile, not cutting through the insulation.

2. Can insects enter through the ventilation channel?

No. Both the exterior intake and interior outlet are fitted with 1.2mm aperture stainless steel mesh. The mesh is fine enough to block mosquitoes, flies, and even small airborne seeds. The mesh panels are removable for annual cleaning.

3. What happens during extreme cold weather?

The manual slider allows you to reduce or completely close the ventilation channel. For projects in cold climates (Zone 6+), we add a thermal break within the channel and use a smaller cross-section to balance ventilation needs with heat retention. The channel can also be equipped with a humidity-sensitive automatic damper that closes when outdoor temperature drops below -5°C.

4. Is the acoustic performance tested by an independent lab?

Yes. Each product configuration is tested at a CNAS-accredited acoustic laboratory to EN 20140-10. We provide the full test report — including attenuation by 1/3 octave frequency bands — with every project quotation. This data is essential for acoustic consultants to verify compliance with project specifications.

5. Can the micro-ventilation channel be added to an existing window order?

The channel must be integrated during frame fabrication — it is not a site-installed add-on. If you have already ordered standard windows without micro-ventilation, we can fabricate replacement frame heads with the integrated channel. Lead time is 15-20 days for the replacement components.

About us:

Liaoning E-taifeng Co.,Ltd was founded in 1995. It has been focusing on the design and manufacture of windows and doors for more than 20 years. In 2002, it became a member of the European Windows and Doors Association and obtained ISO9001 international quality system certification. The company has first-class qualifications for decoration construction and first-class qualifications for special engineering. Liaoning E-taifeng Co.,Ltd has a professional R&D and design team that can customize the inner casement aluminum windows that meet your needs. We value customer feedback, continuously improve our products and services, and ensure customer satisfaction.

Micro vented casement window system
