Product introduction of Spider Glazing Point-fixed glass curtain wall:

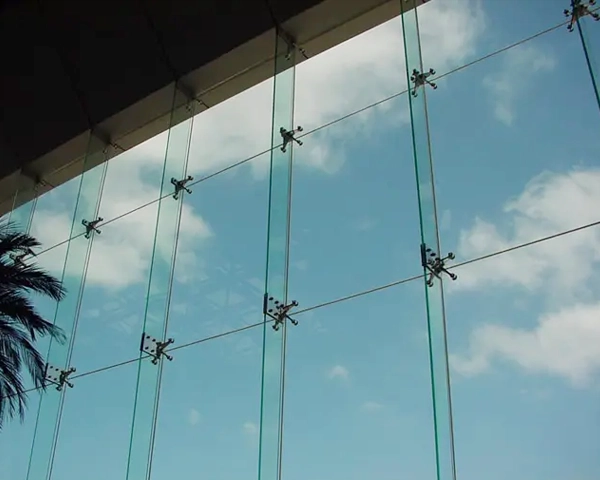

Spider Glazing Point-fixed glass curtain wall is a curtain wall system primarily composed of glass panels, with stainless steel connectors or metal support structures to secure the panels to the building structure. Spider Glazing Point-fixed glass curtain wall utilizes a point-supported structure, resulting in a lightweight overall structure and high transparency from the large expanse of glass panels. Spider Glazing Point-fixed glass curtain wall is widely used on the exterior walls of high-end commercial buildings such as airports, exhibition centers, and office buildings.
Structural Components of Spider Glazing Point supported glass curtain wall:
Glass Panels: Spider Glazing Point-fixed glass curtain wall utilizes high-strength tempered glass, laminated glass, or insulating glass, typically with thicknesses ranging from 8mm to 24mm. Customization is possible based on project requirements and individual client specifications.
Joints: Spider Glazing Point-fixed glass curtain wall's connecting structure utilizes SUS304/SUS316 stainless steel, offering excellent corrosion resistance and structural strength, making it a weatherproof exterior wall.

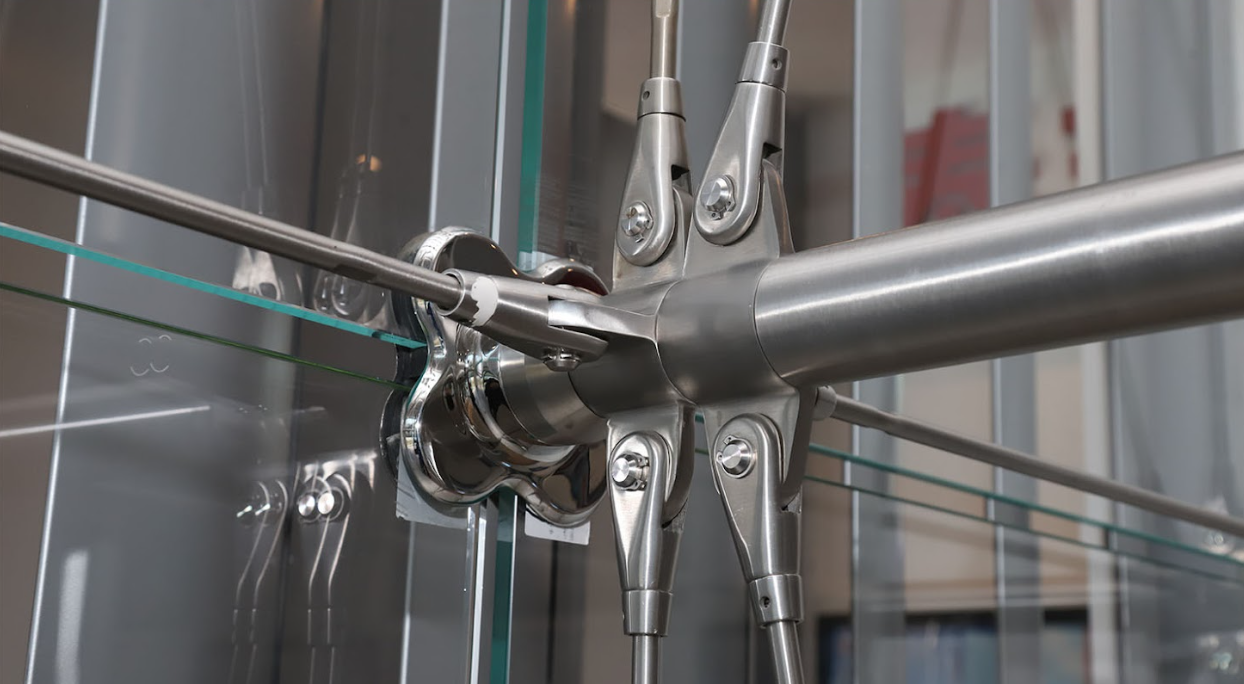

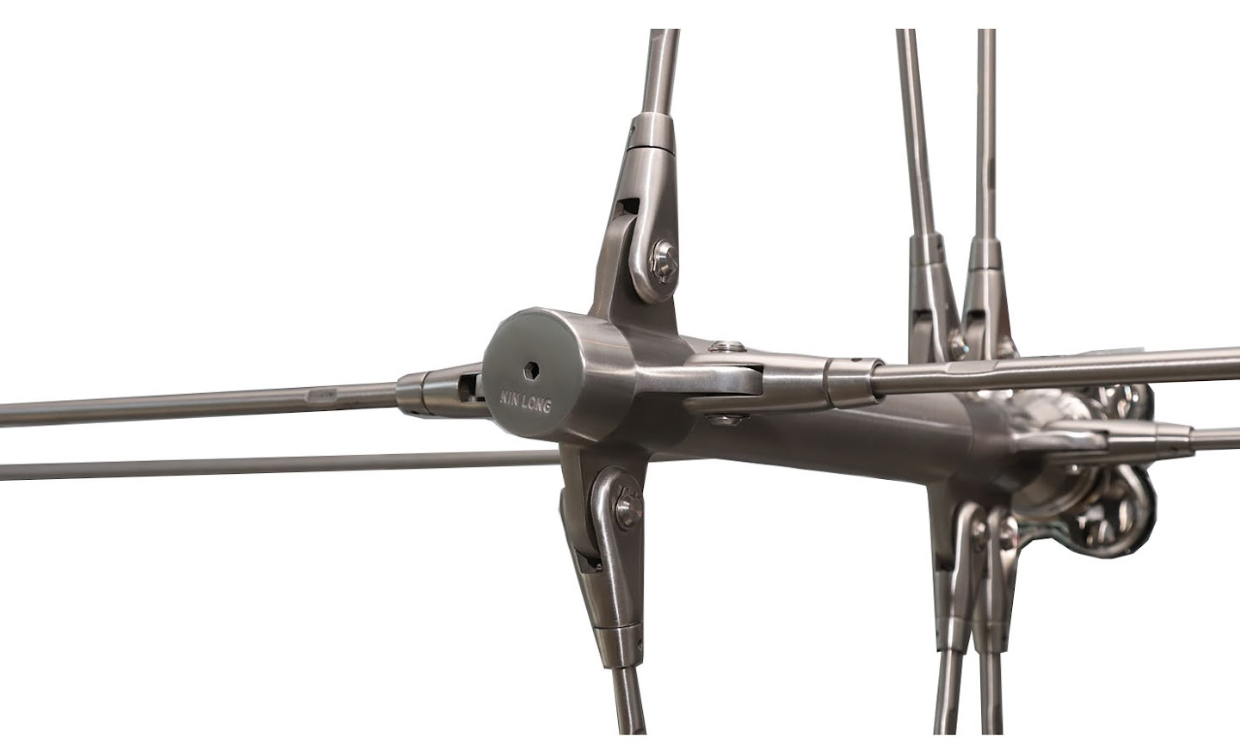

Joints and Adapters: Spider Glazing Point-fixed glass curtain wall's joints connect to the main structure via ball joints, tie rods, or support tubes. The overall design, meticulously calculated by the etaifeng team, ensures uniform stress distribution across the glass.
Sealing System: Spider Glazing Point-fixed glass curtain wall utilizes high-performance weather-resistant silicone structural adhesive and UV-resistant sealant throughout, ensuring excellent airtightness and waterproofing.
Key Performance Indicators of Spider Glazing Point supported glass curtain wall:
Wind Pressure Resistance: Based on structural mechanics calculations and field testing, it can withstand a force 12 typhoon (≥4.0kPa).
Airtightness: Meets GB/T 7106-2019 standard level 8.
Watertightness: Point-fixed glass facade utilizes high-quality sealant, achieving a sealing performance of at least level 6, effectively preventing water seepage and making it ideal for building exterior walls.
Seismic Resistance: Flexible joint connections absorb deformation, making it suitable for use in buildings in earthquake-prone areas, with exceptional earthquake resistance.
Energy Saving and Insulation: Point-fixed glass facade can be equipped with optional Low-E insulating glass, achieving energy savings of over 30%.
Product advantages of Spider Glazing Point-fixed glass facade:
Etaifeng's Spider Glazing Point supported glass curtain wall features a frameless design, creating a simpler and brighter appearance from the exterior. Its large glass panels also provide excellent indoor lighting. Point supported glass curtain wall's connection structure can be configured in a variety of ways, including claw-type, cable-type, and steel-supported. Each Point supported glass curtain wall connection point undergoes stress analysis and damage testing by Etaifeng's professional design team to ensure optimal performance. Point-fixed glass facade can also be customized to meet the needs of individual projects in various sizes, shapes, glass colors, and structural configurations, offering a high degree of customization.
| Point-fixed glass curtain wall | Traditional Framed Glass Curtain Wall | |
| Structural form | Secured with stainless steel connectors, tie rods, or cable structures. | An aluminum alloy frame supports and secures the glass panels. |
| Main material | Tempered/laminated glass, stainless steel connectors, structural adhesive, and cable systems. | Aluminum profiles, tempered/insulated glass, sealing strips, and structural adhesive. |
| Energy-saving performance | Optional Low-E insulating glass and thermally insulated connections offer energy savings of 30%-50%. | Multi-cavity profiles and insulating glass provide excellent energy savings. |
| Design flexibility | Various designs, including large spans, special shapes, curved, and tilted, can be achieved. | The structure is relatively fixed, resulting in limited design flexibility. |
| Construction difficulty | High precision requirements require professional installation and structural calculation. | The process is mature, making installation relatively simple. |
| Service life | Over 20 years of service life with excellent weather resistance. | The seals require regular replacement for approximately 15-20 years. |
Product Application of Point-fixed glass facade:

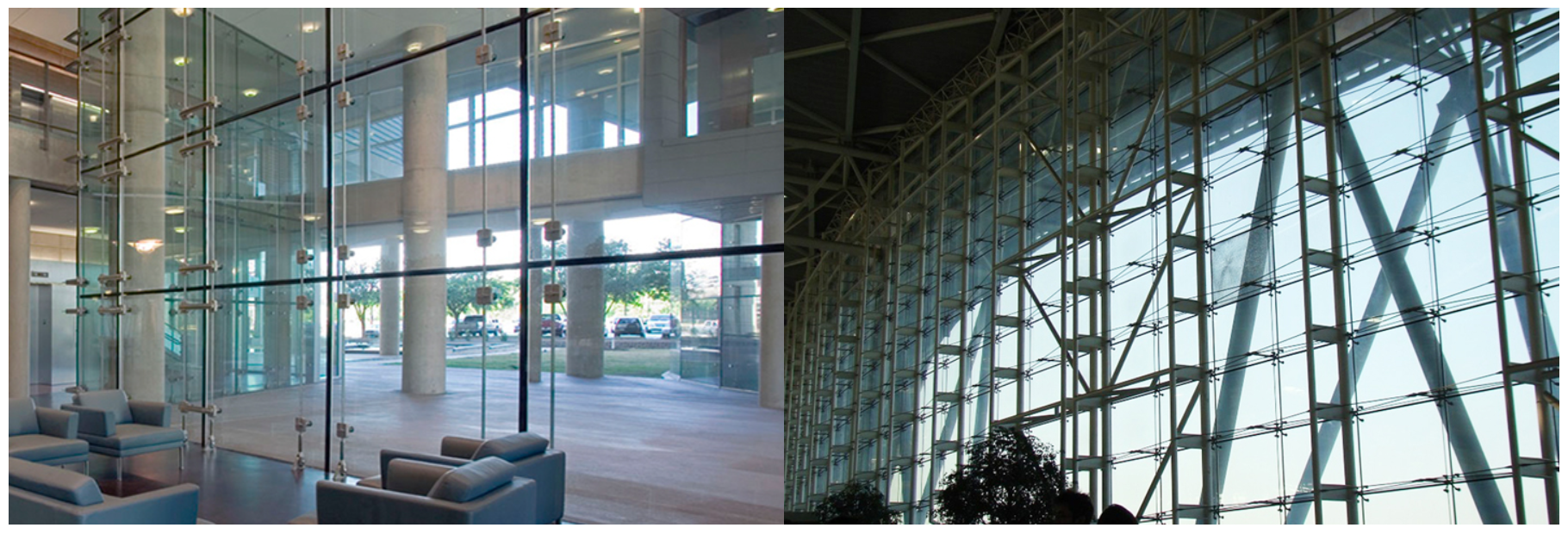

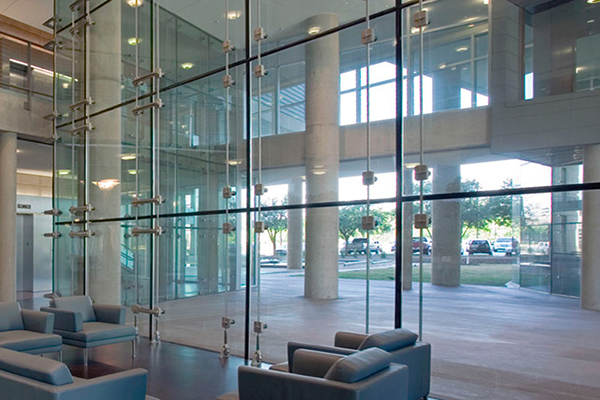

Large shopping mall exteriors: Point-fixed glass facade utilizes large glass panels, providing excellent transparency and daylighting. Spider Glazing Point-fixed glass facade maximizes the amount of natural light, creating a bright and open commercial atmosphere, making it ideal for large shopping mall exteriors.

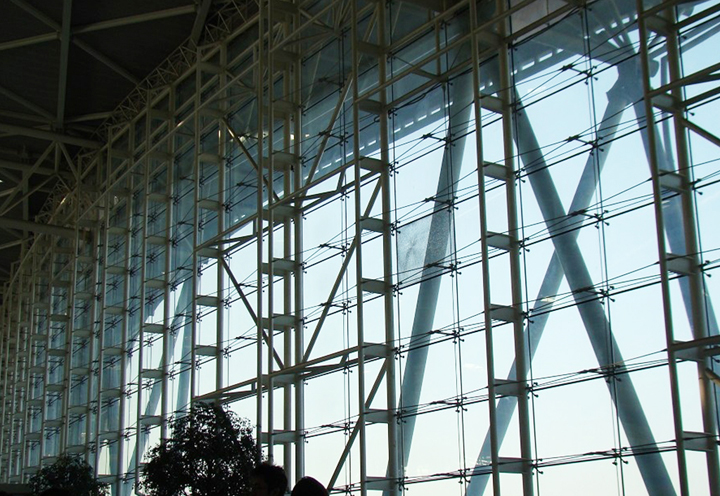

Large public buildings: Point-fixed glass facade boasts a large structural span, resulting in a more aesthetically pleasing overall design. Its point-supported structural system withstands high wind pressure and is exceptionally safe.
Customized Services:
Etaifeng boasts a professional curtain wall design team that provides comprehensive services, from conceptual design and structural calculations to sample production and installation guidance. Each Spider Glazing Point-fixed glass facade curtain wall produced by Etaifeng can be individually customized to suit the architectural style, structural form, and construction requirements of each project. Etaifeng's Spider Glazing Point-fixed glass facade curtain walls are ISO9001 certified and provide structural safety reports, material testing reports, and installation drawings for a worry-free experience.
FAQs:
1. What is the difference between Spider Glazing Point supported glass curtain wall and framed curtain walls?
Spider Glazing Point supported glass curtain wall uses large expanses of glass panels, secured with a metal frame, making the metal frame virtually invisible and providing greater transparency. Framed curtain walls, on the other hand, use aluminum profiles to support the glass, resulting in a relatively heavy structure and significant visual obstruction.
2. What types of buildings are suitable for your Point-fixed glass facade?
Etaifeng's Point-fixed glass facade can be used in the exterior walls of large shopping malls and public buildings. We can design flat, curved, and custom-shaped curtain wall structures, providing tailored solutions tailored to the architectural style and load requirements.
3. How is Point supported glass curtain wall safety guaranteed?
Etaifeng's Point supported glass curtain wall utilizes high-strength tempered or laminated safety glass, coupled with a SUS304/SUS316 stainless steel coupling system. These panels undergo structural mechanics calculations and destructive testing by our professional design team.
4. Do you provide design and installation support for Point-fixed glass facade?
Yes. Our professional Point-fixed glass facade design team can assist you with a full range of services for your project, from structural calculations and construction drawings to sample production and installation technical guidance. Whether it's a new construction project or a renovation, Etaifeng can customize the optimal design solution based on site conditions.
About us:

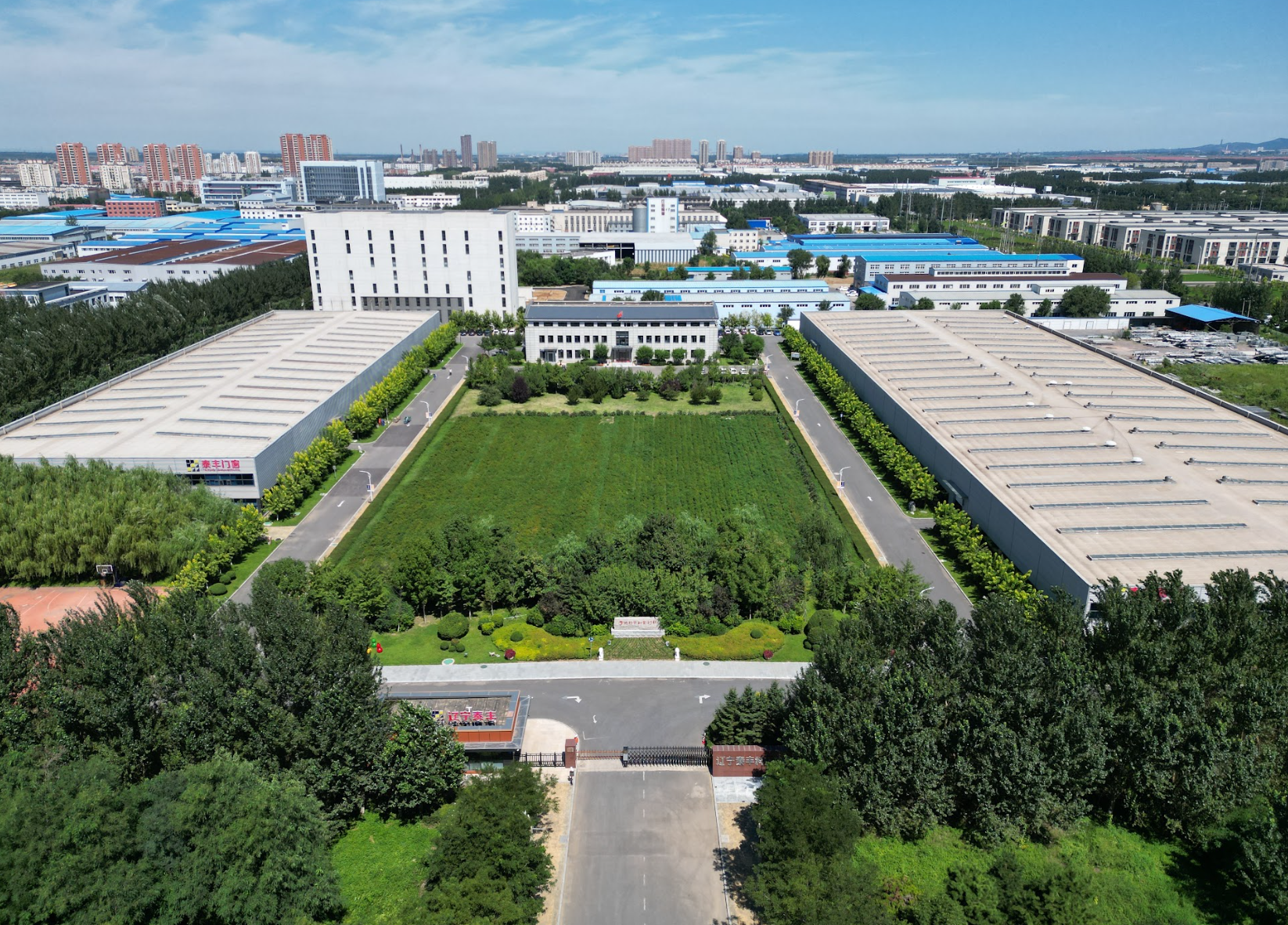

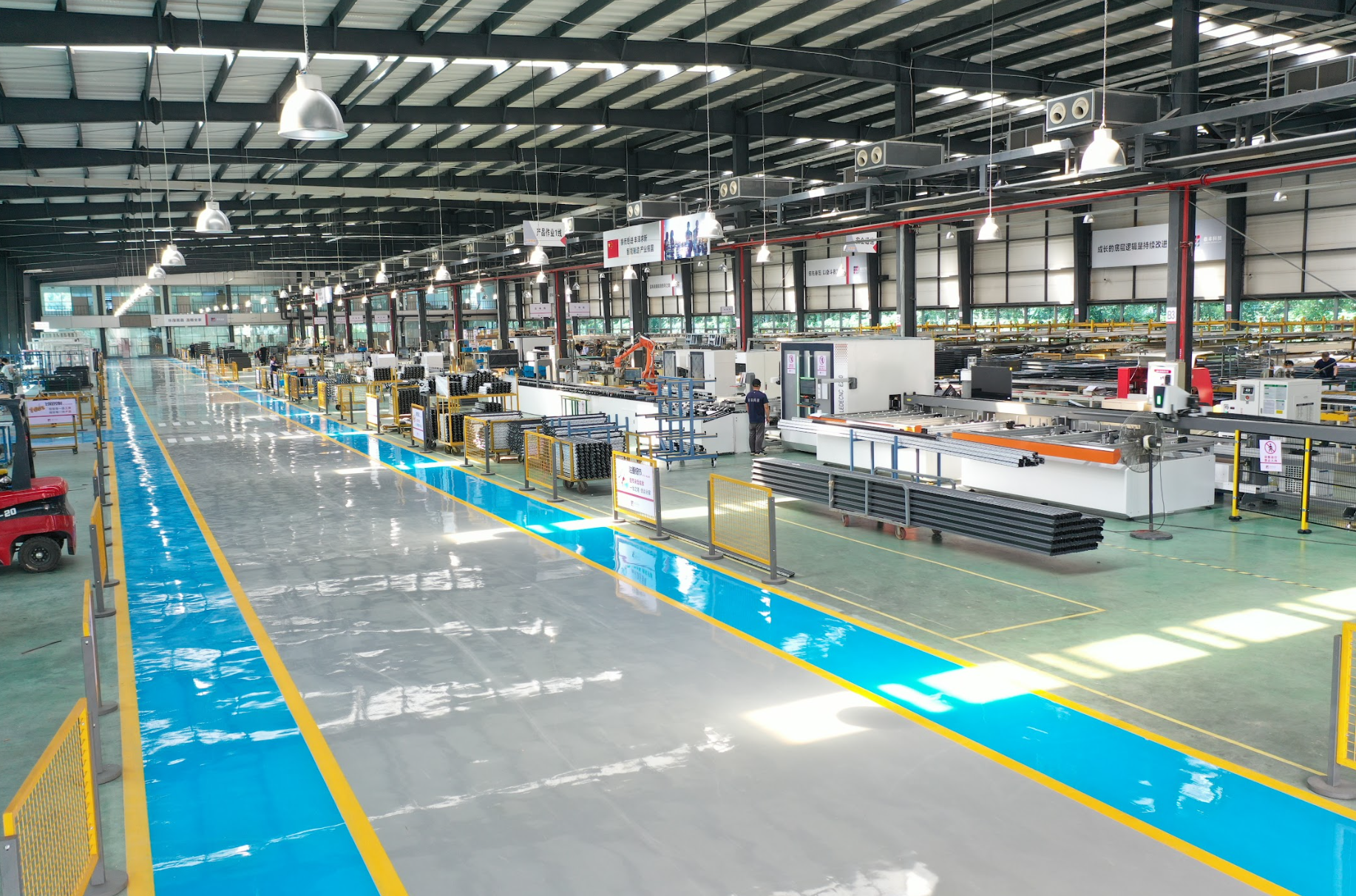

Liaoning E-TaiFeng Co., Ltd., established in 1995, is a high-tech enterprise integrating design, production, and service in energy-efficient door and window systems. With nearly 30 years of expertise, our company has achieved ISO9001 certification and membership in the European Door and Window Association. E-TaiFeng's 60,000 m² facility is equipped with advanced imported machinery to ensure every product meets strict performance standards. We provide comprehensive product lines including system windows, unitized curtain walls, and smart sliding doors. Through innovation and precision, we strive to enhance architectural aesthetics and deliver reliable, sustainable building solutions for global customers.
