System windows are not simply about inserting a thermal break in the middle; the entire profile, from load-bearing capacity and insulation to sealing, is designed as a complete system. The width, position, and connection method of the thermal break all affect the stability of the entire window. If the thermal break is made very wide just to improve the parameters, but the profile structure doesn't keep up, the window is more prone to deformation, and the sealing performance will deteriorate over time.
The first step in structural optimization is actually making the window more stable. Exterior aluminum hinged window generally uses a multi-chamber structure design, like adding a skeleton to the window frame. With more chambers and a reasonable rib structure, the window is less likely to twist under strong winds and temperature changes, allowing the sealing strips to remain tightly in place. Many problems with air and water leaks are not fundamentally due to poor sealing strips, but rather because the window frame deforms, causing the seal to fail.
Truly effective three-stage sealing requires that the profile structure can compress each seal tightly. When designing system windows, the position, depth, and force angle of the sealing grooves are carefully calculated to ensure that when the window is closed, the three sealing strips are simultaneously and evenly stressed, especially the middle seal, which plays a crucial role in sound insulation and airtightness. In Exterior aluminum hinged window windows with well-optimized structures, you can feel a noticeable damping effect when closing the window; this isn't due to heavy hardware, but rather the feedback from the seals being evenly compressed.
Looking further inside, there's the structural cooperation between the glass and the profile. Exterior aluminum hinged window doesn't just pursue thick glass, but focuses more on how the glass is fixed within the window. A reasonable glass groove depth, a stable glazing bead structure, and a continuous sealing design ensure that the glass doesn't shake or loosen under high wind pressure. Much of the noise doesn't come from gaps in the window, but from structural sound transmission caused by micro-vibrations of the glass.

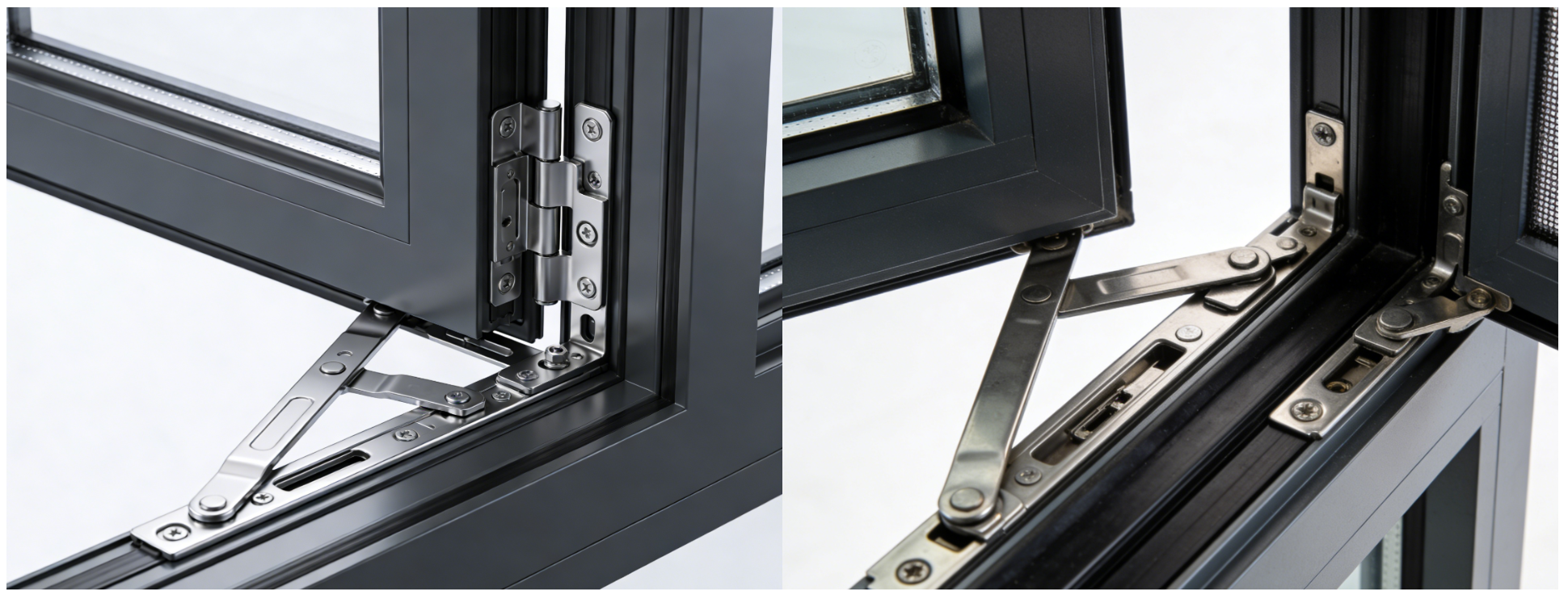

Besides the profile itself, the hardware system is equally important in structural optimization. Exterior aluminum hinged window doesn't treat hardware as mere accessories, but designs it as an integral part of the structure. The position of multi-point locking, the number of locking points, and the force distribution are all planned in advance together with the profile structure. This way, when the window is closed, the entire window is "tightened," rather than relying on one or two locking points to bear the load.
Another detail that many people overlook is the optimization of the drainage structure. Exterior aluminum hinged window's drainage isn't just a few random holes, but uses a hidden drainage chamber to guide rainwater within the window body and then drain it to the outside. This design reduces the risk of water leakage even in heavy rain or strong winds, without compromising the aesthetic appeal of the facade.
True structural optimization is also reflected in considerations for long-term use. For example, sufficient structural strength is reserved to cope with the wear and tear of hardware after years of use; the sealing strip groove is designed reasonably for easy replacement; and structural allowances are made in advance to account for thermal expansion and contraction in different climatic environments.
Therefore, the structural optimization of insulated aluminum system windows is not about exaggerating any single aspect, but rather getting every detail just right. Profiles, thermal breaks, seals, glass, hardware, and drainage – these should be a complete system, not just a collection of parts.
Etaifeng has many years of industry experience in manufacturing customized system doors and windows, and has exported its Chinese-made system window products to more than twenty countries and regions overseas, receiving widespread praise from customers. If you are interested in our Exterior aluminum hinged window products, you can inquire via email, and you are welcome to visit our factory.
