Product introduction of energy saving window:
Etaifeng's Internal casement aluminum window is a modern, intelligent window system ideal for residences, apartments, office buildings, schools, and other locations requiring more convenient ventilation. The Internal casement aluminum window uses a concealed motor drive, eliminating the need for manual operation; simply press the switch of Internal casement aluminum window or use the remote control to easily open and close the window. This makes it perfect for high-mounted windows, rooms for the elderly, and public areas where access is inconvenient. The entire window structure is made of high-strength, heat-insulating aluminum alloy, combined with an EPDM sealing system, providing excellent insulation and airtightness.
Product advantages of energy saving window:
The biggest highlight of the Internal casement aluminum window produced by etaifeng is its ease of use. The Internal casement aluminum window's motor operates quietly, opening and closing smoothly without any mechanical noise affecting daily life. The energy saving window uses a thermally broken structure and double-glazed windows for better insulation, keeping the window warm in winter and cool in summer. The window frame of Aluminum Fixed Casement Window employs a multi-point locking system that automatically and tightly closes, providing a more stable and secure seal than traditional manual windows. The energy saving window can be operated electrically or manually in an emergency, and won't get stuck during a power outage.
Product parameters of Aluminum Fixed Casement Window:
| Profile Material | Thermally broken aluminum alloy (1.4–1.8mm wall thickness optional) |
| Opening Method | Inward opening + electric opening (remote control optional) |
| Sealing System | Three EPDM sealing strips |
| Sound Insulation Performance | 35–45 dB |
| Air Tightness Performance | GB/T 7106-2019 Class 8 |
| Water Tightness Performance | ≥Class 6 |
| Thermal Insulation Performance (U-value) | 1.5–2.0 W/(㎡·K) |
Advantages of an inward-opening structure:
Aluminum Fixed Casement Windows's inward-opening structure is exceptionally convenient in terms of use, cleaning, and maintenance. Aluminum Fixed Casement Windowss open inwards, eliminating the need to lean out to clean the glass, significantly improving safety, especially for high-rise residents, hotels, or office buildings. Aluminum Fixed Casement Windows also offers better sealing; when closed, the window sash and frame are compressed together, reducing the risk of air and water leaks even under high wind pressure, resulting in more stable sound insulation and heat preservation. Aluminum Fixed Casement Windows can also be combined with a tilt-and-turn function for natural micro-ventilation – even in light rain, air circulation is maintained, preventing rainwater from entering, providing a significantly more comfortable experience than ordinary outward-opening windows.
Advantages of an electric system:
Electric aluminum window's electric opening system makes the entire window system more "intelligent" and effortless. With the push of a button, Electric aluminum windows open and close automatically without force, making it particularly user-friendly for the elderly, children, or those with windows positioned high up. Electric aluminum window's motor operates smoothly and quietly, and the opening angle and speed can be set, making daily use more comfortable and controllable. For high-end residential, office building, and curtain wall projects, Electric aluminum window's electric systems can significantly enhance the quality and convenience of the project, and also help buyers more easily impress owners.
Application scenarios of Electric aluminum window:
Modern Aluminum Double Glazed Casement windows are suitable for many applications, especially in locations where manual window opening is inconvenient, such as high-level skylights, stairwells, school classrooms, or hospital wards, where electric ventilation is easily achieved through Modern Aluminum Double Glazed Casement window's control system. For residential buildings, this type of window is also ideal for kitchens, bathrooms, bedrooms for the elderly, and children's rooms, as it opens with the touch of a button, requiring no strenuous operation. Office buildings and commercial buildings also favor Modern Aluminum Double Glazed Casement windows because of their high level of intelligence, ease of maintenance, and ability to enhance the overall building's sophisticated feel.

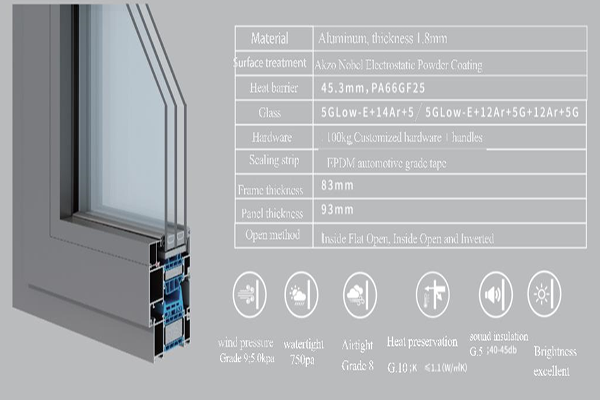

Specific parameters of Passive internal casement aluminum window:
| Material | Aluminum，thickness 1.8mm |
| Surface treatment | Akzo Nobel Electrostatic Powder Coating |
| Heat barrier | 45.3mm, PA66GF25 |
| Glass | 5G Low-E+14Ar+5, or 5G Low-E+12Ar+5G+12Ar+5G |
| Hardware | 100kg Customized hardware + handles |
| Sealing strip | EPDM automotive grade tape |
| Frame thickness | 83mm |
| Panel thickness | 93mm |
| Open method | Inside Flat Open, Inside Open and Inverted |
Why do buyers choose us?
Buyers typically choose Modern Aluminum Double Glazed Casement windows manufactured by etaifeng because they are "reliable, hassle-free, and of stable quality." Electric aluminum windows use brand-name motors and durable hardware, ensuring stable operation in dusty and low-temperature environments. Each energy saving window unit undergoes factory testing before shipment, guaranteeing immediate installation and use on-site. We also provide technical support such as detail diagrams, installation suggestions, and motor wiring instructions to ensure the construction team avoids common pitfalls. energy saving window glass, profiles, and seals can be customized to meet the diverse needs of commercial projects, residential projects, schools, hospitals, and more. For engineering clients, our energy saving windows offer high stability and timely after-sales service, making us a reliable supplier for long-term partnerships.
FAQs of energy saving window:
1. Can Internal casement aluminum window still be turned on and off during a power outage?
Yes, Aluminum Fixed Casement Window is equipped with an emergency manual switch, allowing manual operation during a power outage.
2. What is the typical lifespan of Modern Aluminum Double Glazed Casement window's motors?
Under normal use, Modern Aluminum Double Glazed Casement window's motors can last for over 20,000 cycles, ensuring they won't break down for many years.
3. What is the operating range of Aluminum Fixed Casement Window's remote control?
Aluminum Fixed Casement Window works within a range of 10-20 meters. It can also be upgraded for smart home control.
4. Is Electric aluminum window's electric system susceptible to rain or moisture?
No, Electric aluminum window's motors are moisture-proof and concealed within the window frame, ensuring safety and reliability.
5. What colors does Internal casement aluminum window offer?
Standard colors include white, gray, and black. Wood grain and custom colors are also available.
About us:
Liaoning E-taifeng Co.,Ltd was founded in 1995 and has been focusing on the design and manufacturing of doors and windows for more than 20 years. In 2002, it became a member of the European Doors and Windows Association and received ISO9001 international quality system certification. energy saving window has first-level qualifications for decoration construction and first-level qualifications for special engineering. Liaoning E-taifeng Co.,Ltd has a professional R&D and design team that can customize energy saving window to meet your needs. We value customer feedback and continuously improve our products and services to ensure customer satisfaction.
